| General information |
|---|

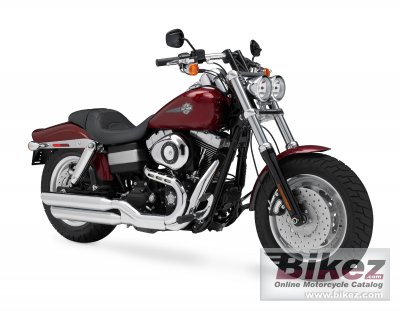

| Model: | Harley-Davidson FXDF Dyna Fat Bob |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | 79 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1584.00 ccm (96.66 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 95.3 x 111.1 mm (3.8 x 4.4 inches) |
| Fuel system: | Injection. ESPFI |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Clutch: | 9-plate, wet |
| Physical measures |
|---|
| Dry weight: | 305.0 kg (672.4 pounds) |
| Seat height: | 663 mm (26.1 inches) If adjustable, lowest setting. |
| Overall length: | 2,330 mm (91.7 inches) |
| Ground clearance: | 125 mm (4.9 inches) |
| Wheelbase: | 1,620 mm (63.8 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Mild steel, tubular frame; rectangular section backbone; |
| Rake (fork angle): | 29.0° |
| Trail: | 1,000 mm (39.4 inches) |
| Front suspension: | 49mm with polished aluminium fork triple clamp |
| Front suspension travel: | 127 mm (5.0 inches) |
| Rear suspension: | Fully Covered, Coil-over shock |
| Rear suspension travel: | 79 mm (3.1 inches) |
| Rear tyre dimensions: | 427/180-70 |
| Front brakes: | Double disc. 4-piston |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. Single piston |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Exhaust system: | Chrome, “Tommy Gun” 2-1-2 collector exhaust |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 19.30 litres (5.10 gallons) |
| Color options: | Vivid Black, Black Pearl, Black Denim, Pewter Denim, Red Hot Sunglo |
| Modifications compared to previous model: | New silver-face
speedometer with range countdown; New rear shocks for improved handling. |
| Comments: | Black powder-coated engine with polished treatment covers; New low-profile front
fender; Bobtail rear fender with chrome supports; Chrome, low-profile fuel tank
console; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless
steel, internally-wired drag handlebar; “Teardrop” air cleaner assembly; One-piece,
two-up Dyna® classic seat; Black mirrors; Dual headlight; Tank medallions;
Black powder-coated engine with polished treatment covers; New low-profile front
fender; Bobtail rear fender with chrome supports; Chrome, low-profile fuel tank
console; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless
steel, internally-wired drag handlebar; “Teardrop” air cleaner assembly; One-piece,
two-up Dyna® classic seat; Black mirrors; Dual headlight; Tank medallions;
Chrome covered low rear shocks with hand-adjustable preload; |
