| General information |
|---|

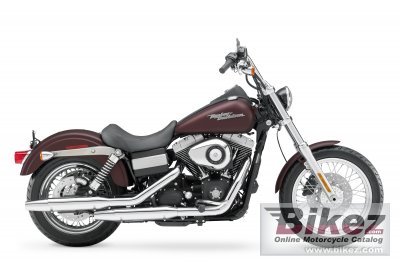

| Model: | Harley-Davidson FXDB Dyna Street Bob |
| Year: | 2008 |
| Category: | Custom / cruiser |
| Rating: | 67.8 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1573.25 ccm (96.00 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 123.39 Nm (12.6 kgf-m or 91.0 ft.lbs) @ 3125 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 95.3 x 111.3 mm (3.8 x 4.4 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Physical measures |
|---|
| Dry weight: | 287.6 kg (634.0 pounds) |
| Weight incl. oil, gas, etc: | 302.5 kg (667.0 pounds) |
| Seat height: | 681 mm (26.8 inches) If adjustable, lowest setting. |
| Overall length: | 2,357 mm (92.8 inches) |
| Ground clearance: | 124 mm (4.9 inches) |
| Wheelbase: | 1,631 mm (64.2 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 29.0° |
| Trail: | 114 mm (4.5 inches) |
| Front tyre dimensions: | 100/90-H19 |
| Rear tyre dimensions: | 160/70-B17 |
| Front brakes: | Single disc. 4-piston calipers |
| Rear brakes: | Single disc. 2-piston calipers |
| Exhaust system: | Chrome, staggered shorty exhaust w/ dual mufflers |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 18.16 litres (4.80 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 4.35 litres (1.15 gallons) |
| Color options: | Vivid Black, Black Denim, Pewter Denim, Crimson Red Denim (New), Dark Blue Denim (New), Two-Tone Olive Pearl Denim/Black Denim (New) |
| Comments: | Mini ´ape-hanger´ handlebar; Fat Bob® fuel tank; black and polished powertrain; low seat height-25.8´; ribbed solo seat; single, tank-mounted speedometer; wrinkle black fuel tank console with indicator lights |
