04 Harley-Davidson FXD-P Dyna-Defender specificationsHarley-Davidson FXD-P Dyna-Defender 2004

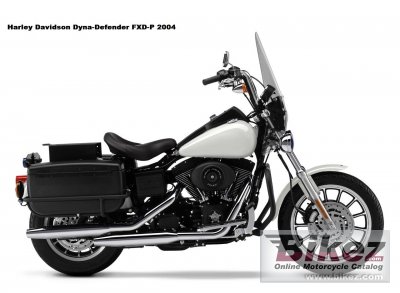

2004 Harley-Davidson FXD-P Dyna-Defender photo
Buzz Garvey. Click to submit more pictures.
   Show big 2004 Harley-Davidson FXD-P Dyna-Defender imageShow more 2004 Harley-Davidson FXD-P Dyna-Defender images
2004 Harley-Davidson FXD-P Dyna-Defender

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



General information
Model:Harley-Davidson FXD-P Dyna-Defender
Year:2004
Category:Custom / cruiser
Rating:71.1 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1442.15 ccm (88.00 cubic inches)
Engine type:V2, four-stroke
Torque:115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 3000 RPM
Compression:8.9:1
Bore x stroke:95.3 x 101.6 mm (3.8 x 4.0 inches)
Fuel system:Carburettor
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame, rectangular section backbone, stamped, cast and forged junctions, forged fender support, MIG welded
Rake (fork angle):28.0
Trail:104 mm (4.1 inches)
Front suspension:39 mm w/ polished aluminum fork triple clamp and dual-rate springs
Front suspension travel:155 mm (6.1 inches)
Rear suspension:Coil over shock
Rear suspension travel:109 mm (4.3 inches)
Front tyre dimensions:MM90-19
Rear tyre dimensions:MT90B16-71H
Front brakes:Double disc
Rear brakes:Single disc
Physical measures and capacities
Dry weight:313.4 kg (691.0 pounds)
Seat height:711 mm (28.0 inches) If adjustable, lowest setting.
Alternate seat height:787 mm (31.0 inches) If adjustable, highest setting.
Overall height:1,275 mm (50.2 inches)
Overall length:1,275 mm (50.2 inches)
Overall width:889 mm (35.0 inches)
Ground clearance:147 mm (5.8 inches)
Wheelbase:1,626 mm (64.0 inches)
Fuel capacity:19.30 litres (5.10 gallons)
Reserve fuel capacity:3.40 litres (0.90 gallons)
Oil capacity:2.80 litres (0.18 quarts)
Other specifications
Starter:Electric
Color options:Birch White, Vivid Black, Black/White, Police Color Palette.
Comments:ENGINE TRIM Black powder-coated w/ wrinkle black treatment. WINDSHIELD Convertible style, breakaway and adjustable. SEAT Solo. FOOTBOARDS with Heel/toe shifter.
