12 Harley-Davidson FLSTSE3 CVO Softail Convertible specificationsHarley-Davidson FLSTSE3 CVO Softail Convertible 2012

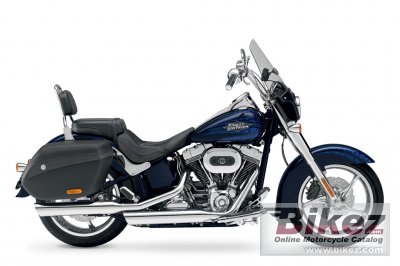

2012 Harley-Davidson FLSTSE3 CVO Softail Convertible photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2012 Harley-Davidson FLSTSE3 CVO Softail Convertible imageShow more 2012 Harley-Davidson FLSTSE3 CVO Softail Convertible images
2012 Harley-Davidson FLSTSE3 CVO Softail Convertible

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The Harley-Davidson® CVO™ Softail® Convertible is a limited-production custom motorcycle that can be configured for all-day touring, two-up cruising or solo profiling by adding or detaching key components, which can be easily removed or installed without tools.

General information
Model:Harley-Davidson FLSTSE3 CVO Softail Convertible
Year:2012
Category:Custom / cruiser
Rating:71.4 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 26699. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1802.69 ccm (110.00 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled, Twin Cam 110B™
Torque:142.38 Nm (14.5 kgf-m or 105.0 ft.lbs) @ 2750 RPM
Compression:9.2:1
Bore x stroke:101.6 x 111.3 mm (4.0 x 4.4 inches)
Valves per cylinder:2
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel control:DOHC
Lubrication system:Pressurized, dry-sump with oil cooler
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate with diaphragm spring in oil bath
Driveline:Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio
Fuel consumption:5.23 litres/100 km (19.1 km/l or 44.98 mpg)
Greenhouse gases:121.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Chrome, shorty-dual exhaust with chrome mufflers and muffler shields
Chassis, suspension, brakes and wheels
Rake (fork angle):32.0°
Trail:147 mm (5.8 inches)
Front suspension:41.3 mm telescopic, chrome upper fork-slider covers
Front suspension travel:117 mm (4.6 inches)
Rear suspension:Hidden, horizontal-mounted, coil-over
Rear suspension travel:51 mm (2.0 inches)
Front tyre dimensions:130/70-R18
Rear tyre dimensions:200/50-R18
Front brakes:Single disc. 4-piston calipers. ABS.
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. 4-piston caliper. ABS.
Rear brakes diameter:292 mm (11.5 inches)
Wheels:Mirror Chrome Stinger Custom Wheels
Physical measures and capacities
Dry weight:345.2 kg (761.0 pounds)
Weight incl. oil, gas, etc:357.4 kg (788.0 pounds)
Seat height:620 mm (24.4 inches) If adjustable, lowest setting.
Overall length:2,410 mm (94.9 inches)
Ground clearance:109 mm (4.3 inches)
Wheelbase:1,631 mm (64.2 inches)
Fuel capacity:18.93 litres (5.00 gallons)
Oil capacity:2.80 litres (0.18 quarts)
Other specifications
Starter:Electric
Instruments:Digital speedometer and analog tachometer. Time of day clock on odometer, dual tripmeter, engine diagnostics readout, LED indicator lights
Light:55-watt low beam, 60-watt high beam
Electrical:Sealed, maintenance-free battery,
Seat:Custom leather seat, removable passenger pillion, and detachable stylized passenger upright and backrest pad with distressed brown leather (satin pewter only) or reptile inserts
Factory warranty:2 years, unlimited mileage.
Color options:Crimson Red Sunglo with Scarlet Crystal graphics, Abyss Blue with Catacomb graphics, Satin Pewter with Catacomb graphics
Comments:CVO is ab abbreviation of HD´s Custom Vehicle Operations.
