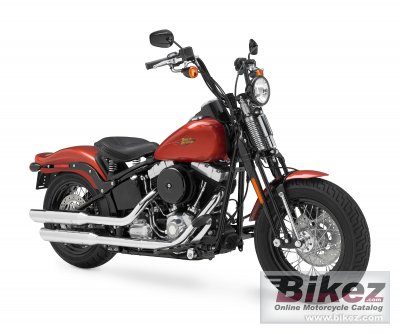

Harley-Davidson's profilation of this bike With an authenticity that could only come from Harley-Davidson, the Cross Bones® combines the pure styling of a historic bobber with modern power and technology. Harkening back to a time when returning soldiers stripped parts off their bikes for performance, and sought fat gas tanks to ride across the country, everything about the Cross Bones is true.
General information Model: Harley-Davidson FLSTSB Softail Cross Bones Year: 2011 Category: Custom / cruiser Rating: 81.7 out of 100. Show full rating and compare with other bikes Price as new (MSRP): US$ 16999. Euro 18865. UK £ 14550. Prices depend on country, taxes, accessories, etc. Engine and transmission Displacement: 1584.00 ccm (96.66 cubic inches) Engine type: V2, four-stroke Torque: 127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3000 RPM Compression: 9.2:1 Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches) Fuel system: Injection. Electronic Sequential Port Fuel Injection Lubrication system: Pressurized, dry-sump Cooling system: Air Gearbox: 6-speed Transmission type, final drive: Belt Clutch: 9-plate, wet Driveline: Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/66 ratio Exhaust system: Straight shot exhaust with slash-cut ends Chassis, suspension, brakes and wheels Frame type: Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Rake (fork angle): 32.5° Trail: 160 mm (6.3 inches) Front suspension: Black leading link for Springer model Front suspension travel: 97 mm (3.8 inches) Rear suspension: Hidden, horizontal-mounted, coil-over Rear suspension travel: 91 mm (3.6 inches) Front tyre dimensions: MT90-B16 Rear tyre dimensions: 200/55-R17 Front brakes: Single disc Front brakes diameter: 292 mm (11.5 inches) Rear brakes: Single disc. Single piston Rear brakes diameter: 292 mm (11.5 inches) Wheels: Black, Laced Steel Physical measures and capacities Dry weight: 317.5 kg (700.0 pounds) Seat height: 765 mm (30.1 inches) If adjustable, lowest setting. Overall length: 2,330 mm (91.7 inches) Ground clearance: 124 mm (4.9 inches) Wheelbase: 1,630 mm (64.2 inches) Fuel capacity: 19.70 litres (5.20 gallons) Oil capacity: 3.30 litres (0.22 quarts) Other specifications Starter: Electric Instruments: Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed ind Seat: 2-piston Factory warranty: 24 months, unlimited mileage (US) Color options: Vivid Black, Cool Blue Pearl, Sedona Orange, Black Denim Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questions Join the 11 Harley-Davidson FLSTSB Softail Cross Bones discussion group.
Insurance, loans, tests
Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes List related bikes for comparison of specs
Rating sample for this Harley-Davidson bike
Touring capabilities for the 2011 Harley-Davidson FLSTSB Softail Cross Bones: (85.5 out of 100) You can also compare bikes.
