| General information |
|---|

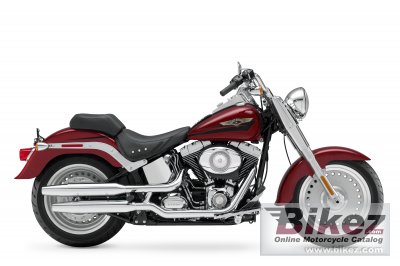

| Model: | Harley-Davidson FLSTF Softail Fat Boy |
| Year: | 2008 |
| Category: | Custom / cruiser |
| Rating: | 62.7 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1573.25 ccm (96.00 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 3300 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 95.3 x 111.3 mm (3.8 x 4.4 inches) |
| Fuel system: | Injection. ESPFI |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Physical measures |
|---|
| Dry weight: | 314.8 kg (694.0 pounds) |
| Weight incl. oil, gas, etc: | 323.9 kg (714.0 pounds) |
| Seat height: | 698 mm (27.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,395 mm (94.3 inches) |
| Ground clearance: | 130 mm (5.1 inches) |
| Wheelbase: | 1,638 mm (64.5 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 32.0° |
| Trail: | 147 mm (5.8 inches) |
| Front tyre dimensions: | 140/75-R17 |
| Rear tyre dimensions: | 200/55-R17 |
| Front brakes: | Single disc. 4-piston calipers |
| Rear brakes: | Single disc. 2-piston torque-free calipers |
| Exhaust system: | Chrome, over/under shotgun exhaust w/ dual mufflers |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 18.92 litres (5.00 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 4.35 litres (1.15 gallons) |
| Color options: | Vivid Black, Pewter Pearl, Pacific Blue Pearl, Black Pearl, Dark Blue Denim (New), Candy Red Sunglo (New) 105th Anniversary Copper Pearl/Vivid Black, Purple Haze (Custom), Copperhead Pearl and Red Hot (Custom), Golden Glow and Black Glow (Custom) |
| Comments: | Fat 200mm rear tire; 17-in. front wheel; fat 1-1/4´ internally wired handlebar with giant bare knuckle risers; Silver, Bullet Hole Disc Cast Aluminum wheels; two-tone seat and bullet laced valance; custom graphics package on front fender, fuel tank and rear fender |
