10 Harley-Davidson FLHXX Street Glide Trike specificationsHarley-Davidson FLHXX Street Glide Trike 2010

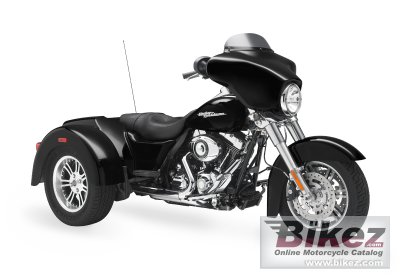

2010 Harley-Davidson FLHXX Street Glide Trike photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2010 Harley-Davidson FLHXX Street Glide Trike imageShow more 2010 Harley-Davidson FLHXX Street Glide Trike images
2010 Harley-Davidson FLHXX Street Glide Trike

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The Street GlideŽ Trike brings lean, stripped-down, hot-rod styling to the three-wheel category.

General information
Model:Harley-Davidson FLHXX Street Glide Trike
Year:2010
Category:Custom / cruiser
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Price as new (MSRP):US$ 26999. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1687.97 ccm (103.00 cubic inches)
Engine type:V2, four-stroke
Torque:131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM
Compression:9.6:1
Bore x stroke:95.3 x 111.0 mm (3.8 x 4.4 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection
Fuel control:DOHC
Lubrication system:Pressurized, dry-sump with oil cooler
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Exhaust system:Two-into-One-into-Two chrome exhaust
Chassis, suspension, brakes and wheels
Frame type:Mild steel, square-section backbone with twin downtubes
Rake (fork angle):26.0°
Front suspension:41.3 mm telescopic, triple-circuit damping
Front suspension travel:117 mm (4.6 inches)
Rear suspension:Enhanced handling
Rear suspension travel:75 mm (3.0 inches)
Front tyre dimensions:MT90-B16
Rear tyre dimensions:206/65-R16
Front brakes:Single disc. ABS
Front brakes diameter:299 mm (11.8 inches)
Rear brakes:Double disc. ABS
Rear brakes diameter:228 mm (9.0 inches)
Physical measures and capacities
Dry weight:485.0 kg (1,069.2 pounds)
Weight incl. oil, gas, etc:503.0 kg (1,108.9 pounds)
Seat height:679 mm (26.7 inches) If adjustable, lowest setting.
Overall length:2,687 mm (105.8 inches)
Overall width:1,379 mm (54.3 inches)
Ground clearance:119 mm (4.7 inches)
Wheelbase:1,691 mm (66.6 inches)
Fuel capacity:22.71 litres (6.00 gallons)
Oil capacity:3.70 litres (0.24 quarts)
Other specifications
Starter:Electric
Color options:Vivid Black, Red Hot Sunglo
Further information
