10 Harley-Davidson FLHX Street Glide specificationsHarley-Davidson FLHX Street Glide 2010

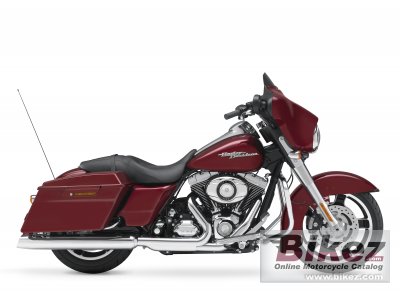

2010 Harley-Davidson FLHX Street Glide photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2010 Harley-Davidson FLHX Street Glide image
2010 Harley-Davidson FLHX Street Glide

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The redesigned Street Glide® is a bagger with hot-rod soul, with minimal trim and chrome, lowered suspension, and black slotted aluminum wheels. Inspired by the street, but still ready for the long road.

General information
Model:Harley-Davidson FLHX Street Glide
Year:2010
Category:Touring
Rating:70.7 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1584.00 ccm (96.66 cubic inches)
Engine type:V2, four-stroke
Torque:127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 RPM
Bore x stroke:95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system:Injection. ESPFI
Fuel control:OHV
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet
Exhaust system:2-1-2 chrome exhaust with dual mufflers and slash-down end caps
Chassis, suspension, brakes and wheels
Frame type:Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Rake (fork angle):26.0°
Trail:170 mm (6.7 inches)
Front suspension:41.3mm telescopic, triple circuit damping
Front suspension travel:117 mm (4.6 inches)
Rear suspension:Short, air-adjustable
Rear suspension travel:51 mm (2.0 inches)
Front tyre dimensions:130/70-B18
Rear tyre dimensions:180/65-B16
Front brakes:Double disc. 4-piston fixed caliper
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc. 4-piston fixed caliper
Rear brakes diameter:300 mm (11.8 inches)
Physical measures and capacities
Dry weight:355.0 kg (782.6 pounds)
Seat height:715 mm (28.1 inches) If adjustable, lowest setting.
Overall length:2,430 mm (95.7 inches)
Ground clearance:125 mm (4.9 inches)
Wheelbase:1,625 mm (64.0 inches)
Fuel capacity:22.70 litres (6.00 gallons)
Oil capacity:3.50 litres (0.23 quarts)
Other specifications
Starter:Electric
Color options:Vivid Black, Scarlet Red, Brilliant Silver Pearl, Black Denim, Red Hot Sunglo
Comments:Black powder-coated engine with chrome treatment covers; “Batwing”, fork-mounted fairing with integrated side mirrors; Chrome, low-profile fuel tank console; Clear-lens reflector-optics headlamp; Full-length height adjustable rider footboards; Passenger footpegs; Stainless steel, classic touring handlebars; One-piece, two-up Street Glide® classic seat; Lightly smoked, Electra Glide® low windshield; Injection-moulded GTX® saddlebags with locks; Harman-Kardon® Advanced Audio System; Cruise control; ABS as standard; New custom tail light
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 10 Harley-Davidson FLHX Street Glide discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Harley-Davidson. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2010 Harley-Davidson FLHX Street Glide for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this Harley-Davidson bike
Touring capabilities for the 2010 Harley-Davidson FLHX Street Glide:


(87.5 out of 100)

Click here for complete rating. You can also compare bikes.
