| General information |
|---|

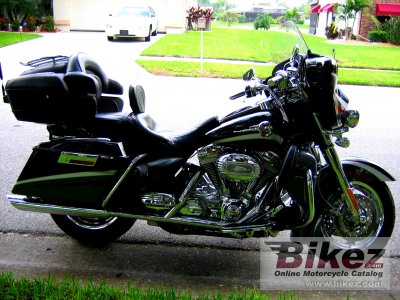

| Model: | Harley-Davidson FLHTCUSE Screamin Eagle Ultra Classic Electra Glide |
| Year: | 2006 |
| Category: | Custom / cruiser |
| Rating: | 68.8 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1687.97 ccm (103.00 cubic inches) |
| Engine type: | Twin |
| Stroke: | 2 |
| Torque: | 135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 4000 RPM |
| Compression: | 9.0:1 |
| Bore x stroke: | 98.3 x 111.0 mm (3.9 x 4.4 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
Transmission type
final drive: | Belt |
| Physical measures |
|---|
| Dry weight: | 383.3 kg (845.0 pounds) |
| Weight incl. oil, gas, etc: | 401.4 kg (885.0 pounds) |
| Overall length: | 2,464 mm (97.0 inches) |
| Ground clearance: | 130 mm (5.1 inches) |
| Wheelbase: | 1,613 mm (63.5 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 26.0° |
| Trail: | 155 mm (6.1 inches) |
| Front brakes: | Double disc |
| Rear brakes: | Single disc |
| Exhaust system: | Cross-over dual w/chrome 4-inches. Touring mufflers w/chrome billet end caps. |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 18.92 litres (5.00 gallons) |
