| General information |
|---|

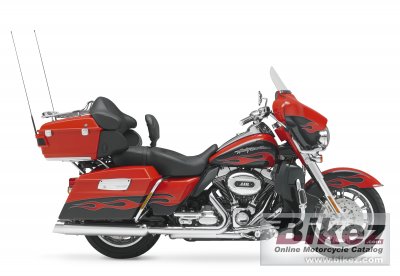

| Model: | Harley-Davidson FLHTCUSE5 CVO Ultra Classic Electra Glide |
| Year: | 2010 |
| Category: | Touring |
| Rating: | 76.4 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 35999. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1800.00 ccm (109.84 cubic inches) |
| Engine type: | V2, four-stroke |
| Torque: | 151.00 Nm (15.4 kgf-m or 111.4 ft.lbs) |
| Compression: | 9.2:1 |
| Bore x stroke: | 101.6 x 111.1 mm (4.0 x 4.4 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Hydraulically actuated, 9-plate wet, with high performance spring |
| Exhaust system: | Chrome, dual exhaust with touring mufflers, |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded |
| Rake (fork angle): | 26.0° |
| Trail: | 170 mm (6.7 inches) |
| Front suspension: | 41.3mm telescopic, with blow-by valve |
| Front suspension travel: | 117 mm (4.6 inches) |
| Rear suspension: | Air-adjustable |
| Rear suspension travel: | 76 mm (3.0 inches) |
| Front tyre dimensions: | 130/80-B17 |
| Rear tyre dimensions: | 180/65-B16 |
| Front brakes: | Double disc |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 300 mm (11.8 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 407.0 kg (897.3 pounds) |
| Seat height: | 755 mm (29.7 inches) If adjustable, lowest setting. |
| Overall length: | 2,535 mm (99.8 inches) |
| Ground clearance: | 125 mm (4.9 inches) |
| Wheelbase: | 1,635 mm (64.4 inches) |
| Fuel capacity: | 22.70 litres (6.00 gallons) |
| Oil capacity: | 3.50 litres (0.23 quarts) |
| Other specifications |
|---|
| Color options: | Scarlet Red Pearl/Dark Slate with Flame Graphics, Riptide Blue/Titanium Dust with Flame Graphics; Burnt Amber/ Hot Citrus with Flame Graphics |
| Comments: | CVO means Custom Vehicle Operation |
