| General information |
|---|

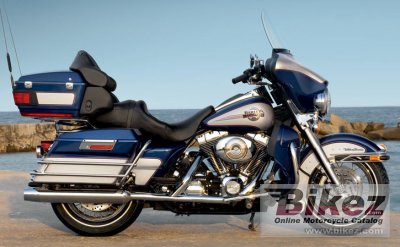

| Model: | Harley-Davidson FLHTCUI Ultra Classic Electra Glide |
| Year: | 2006 |
| Category: | Custom / cruiser |
| Rating: | 64.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1442.15 ccm (88.00 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 116.61 Nm (11.9 kgf-m or 86.0 ft.lbs) @ 3500 RPM |
| Compression: | 8.9:1 |
| Bore x stroke: | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Valves per cylinder: | 2 |
| Fuel control: | DOHC |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Belt |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| More details | Consult a Harley-Davidson repair manual. |
| Physical measures |
|---|
| Dry weight: | 357.4 kg (788.0 pounds) |
| Weight incl. oil, gas, etc: | 371.5 kg (819.0 pounds) |
| Seat height: | 693 mm (27.3 inches) If adjustable, lowest setting. |
| Overall length: | 2,497 mm (98.3 inches) |
| Ground clearance: | 130 mm (5.1 inches) |
| Wheelbase: | 1,613 mm (63.5 inches) |
| Chassis and dimensions |
|---|
| Front brakes: | Double disc |
| Rear brakes: | Single disc |
| Exhaust system: | Chrome, cross-over duals |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 18.92 litres (5.00 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 5.47 litres (1.45 gallons) |
| Color options: | Vivid black, black cherry, black pearl, deep cobalt, glacier white pearl, rich sunglo blue, brandy wine sunglo, two-tone rich sunglo blue and chopper blue, two-tone chopper blue and brilliant silver, two-tone black cherry and black pearl, two-tone fire re |
