10 Harley-Davidson FLHT Electra Glide Standard specificationsHarley-Davidson FLHT Electra Glide Standard 2010

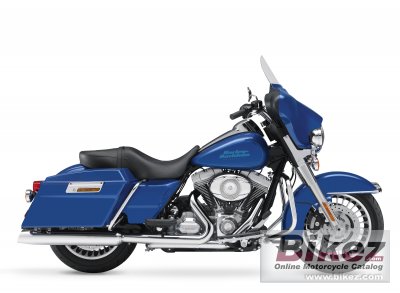

2010 Harley-Davidson FLHT Electra Glide Standard photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2010 Harley-Davidson FLHT Electra Glide Standard image
2010 Harley-Davidson FLHT Electra Glide Standard

Discuss this bike
Rate this motorbike
This bike's rating
1 review available
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



General information
Model:Harley-Davidson FLHT Electra Glide Standard
Year:2010
Category:Touring
Rating:63 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1584.00 ccm (96.66 cubic inches)
Engine type:V2, four-stroke
Torque:127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 RPM
Compression:9.2:1
Bore x stroke:95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet
Exhaust system:2-1-2 chrome exhaust with dual mufflers and taper end caps
Chassis, suspension, brakes and wheels
Frame type:Mild steel; tubular frame; two-piece stamped and welded backbone;
Rake (fork angle):26.0°
Trail:170 mm (6.7 inches)
Front suspension:41.3mm telescopic, triple circuit damping
Front suspension travel:117 mm (4.6 inches)
Rear suspension:Air-adjustable
Rear suspension travel:76 mm (3.0 inches)
Front tyre dimensions:130/80-B17
Rear tyre dimensions:180/65-B16
Front brakes:Double disc. 4-piston fixed caliper
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc. 4-piston fixed caliper
Rear brakes diameter:300 mm (11.8 inches)
Physical measures and capacities
Dry weight:355.0 kg (782.6 pounds)
Seat height:740 mm (29.1 inches) If adjustable, lowest setting.
Overall length:2,460 mm (96.9 inches)
Ground clearance:145 mm (5.7 inches)
Wheelbase:1,625 mm (64.0 inches)
Fuel capacity:22.70 litres (6.00 gallons)
Oil capacity:3.50 litres (0.23 quarts)
Other specifications
Color options:Vivid Black, Flame Blue Pearl
Comments:Silver powder-coated engine with polished treatment covers; “Batwing”, fork-mounted fairing; Chrome, low-profile fuel tank console; Clear-lens reflector-optics headlamp; Full-length height adjustable rider footboards; Full-length height adjustable passenger footboards; Stainless steel, classic touring handlebars; One-piece, two-up Electra Glide® classic comfort stitch seat; Clear, Lexan® windshield; Injection-moulded GTX® saddlebags with locks; ABS as standard
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 10 Harley-Davidson FLHT Electra Glide Standard discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Harley-Davidson. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2010 Harley-Davidson FLHT Electra Glide Standard for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this Harley-Davidson bike
Design and look for the 2010 Harley-Davidson FLHT Electra Glide Standard:


(79.4 out of 100)

Click here for complete rating. You can also compare bikes.
