09 Gilera Nexus 500 specificationsGilera Nexus 500 2009

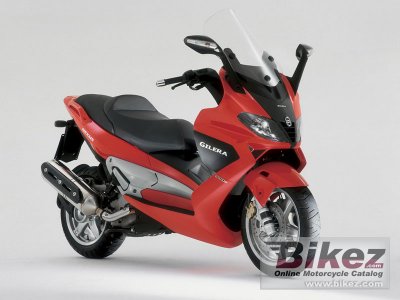

2009 Gilera Nexus 500 photo
Picture credits - Gilera. Click to submit more pictures.
   Show big 2009 Gilera Nexus 500 imageShow more 2009 Gilera Nexus 500 images
2009 Gilera Nexus 500

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Gilera's profilation of this bike
Combining motorcycle technology and maintaining the advantages of a scooter the Nexus displays several mechanical solutions, usually only seen on a motorcycle, that provide racing performance and extraordinary manoeuvrability while keeping the vehicle safe and stable at high speeds.

General information
Model:Gilera Nexus 500
Year:2009
Category:Scooter
Rating:66.6 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:460.00 ccm (28.07 cubic inches)
Engine type:Single cylinder, four-stroke
Power:40.12 HP (29.3 kW)) @ 7500 RPM
Torque:43.00 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 5500 RPM
Compression:10.5:1
Bore x stroke:92.0 x 69.0 mm (3.6 x 2.7 inches)
Valves per cylinder:4
Fuel system:Injection
Fuel control:SOHC
Ignition:Electronic inductive discharge, variable spark advance controlled by electronic injection
Lubrication system:Wet sump
Cooling system:Liquid
Gearbox:Automatic
Transmission type,
final drive:
Belt
Exhaust system:Closed loop system with lambda sensor and three-way catalytic converter in exhaust pipe. Euro 3.
Chassis, suspension, brakes and wheels
Frame type:Double cradle trellis made of high-strength steel tubes
Front suspension:Kayaba telehydraulic fork
Rear suspension:Progressive POWER DRIVE, Kayaba gas shock absorber with spring preload
Rear suspension travel:76 mm (3.0 inches)
Front tyre dimensions:120/70-15
Rear tyre dimensions:160/60-14
Front brakes:Single disc. Stainless steel double disc, with floating calliper and two Brembo pistons 28 mm front left and two Brembo pistons 26 mm front right
Front brakes diameter:260 mm (10.2 inches)
Rear brakes:Single disc. Stainless steel disk, fixed calliper, two 34 mm opposed pistons
Rear brakes diameter:240 mm (9.4 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:216.0 kg (476.2 pounds)
Seat height:780 mm (30.7 inches) If adjustable, lowest setting.
Overall length:2,090 mm (82.3 inches)
Overall width:765 mm (30.1 inches)
Wheelbase:1,515 mm (59.6 inches)
Fuel capacity:15.00 litres (3.96 gallons)
Reserve fuel capacity:2.80 litres (0.74 gallons)
Other specifications
Starter:Electric
Color options:Rosso Emotion
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 09 Gilera Nexus 500 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Gilera. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2009 Gilera Nexus 500 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this Gilera bike
Design and look for the 2009 Gilera Nexus 500:


(83.2 out of 100)

Click here for complete rating. You can also compare bikes.
