| General information |
|---|

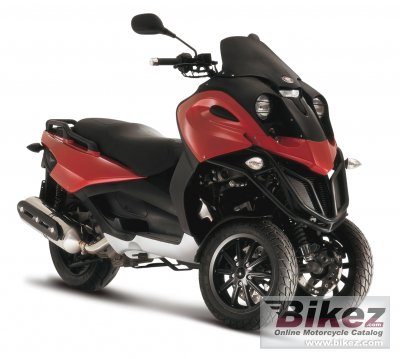

| Model: | Gilera Fuoco 500ie |
| Year: | 2007 |
| Category: | Prototype / concept model |
| Rating: | 69.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 492.70 ccm (30.06 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 40.00 HP (29.2 kW)) @ 7250 RPM |
| Torque: | 42.23 Nm (4.3 kgf-m or 31.1 ft.lbs) @ 5500 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 94.0 x 71.0 mm (3.7 x 2.8 inches) |
| Fuel control: | SOHC |
| Ignition: | Electronic inductive discharge and variable spark advance in electronic unit with electronic immobilizer. Fuel pump shutoff when bike tips over. Two spark plugs. |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
| Clutch: | Dry centrifugal type with damping plugs |
| Physical measures |
|---|
| Dry weight: | 244.0 kg (537.9 pounds) |
| Seat height: | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall length: | 2,160 mm (85.0 inches) |
| Overall width: | 775 mm (30.5 inches) |
| Wheelbase: | 1,550 mm (61.0 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Double cradle trellis made of high strength steel tubes |
| Front suspension: | Parallelogram composed of four aluminium arms supporting two steering tubes, cantilevered suspension. Travel: 85 mm. Electro-hydraulic suspension locking system. |
| Front suspension travel: | 85 mm (3.3 inches) |
| Rear suspension: | Oscillating engine fixed to the frame with a swingarm and two dual effect hydraulic shock absorbers with four-position spring preload. Travel: 110 mm |
| Rear suspension travel: | 110 mm (4.3 inches) |
| Front tyre dimensions: | 120/70-12 |
| Rear tyre dimensions: | 140/70-14 |
| Front brakes: | Double disc. Stainless steel double disk, Ø 240 mm, two-piston caliper |
| Front brakes diameter: | 240 mm (9.4 inches) |
| Rear brakes: | Single disc. Stainless steel disk, Ø 280 mm, floating two-piston caliper |
| Rear brakes diameter: | 280 mm (11.0 inches) |
| Speed and acceleration |
|---|
| Top speed: | 145.0 km/h (90.1 mph) |
| Power/weight ratio: | 0.1639 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 12.00 litres (3.17 gallons) |
