| General moped information |
|---|

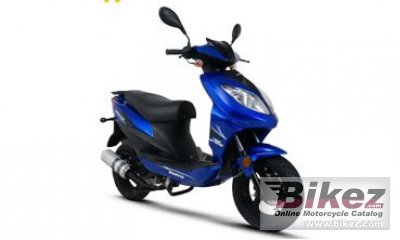

| Model: | Giantco Stealth Naked 4T |
| Year: | 2009 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.60 ccm (3.03 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 2.82 HP (2.1 kW)) @ 7000 RPM |
| Torque: | 2.50 Nm (0.3 kgf-m or 1.8 ft.lbs) @ 6500 RPM |
| Compression: | 10.4:1 |
| Bore x stroke: | 39.0 x 41.5 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor |
| Fuel control: | SOHC |
| Ignition: | CDI |
| Cooling system: | Air |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Oil damped telescopic fork |
| Rear suspension: | Oil damped coil spring with Gas Chamber |
| Front tyre dimensions: | 110/70-12 |
| Rear tyre dimensions: | 120/70-12 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 90.0 kg (198.4 pounds) |
| Power/weight ratio: | 0.0313 HP/kg |
| Overall height: | 1,070 mm (42.1 inches) |
| Overall length: | 1,830 mm (72.0 inches) |
| Wheelbase: | 1,270 mm (50.0 inches) |
| Fuel capacity: | 4.20 litres (1.11 gallons) |
| Oil capacity: | 0.80 litres (0.05 quarts) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Color options: | Blue |
| Comments: | Chinese scooter |
