| General moped information |
|---|

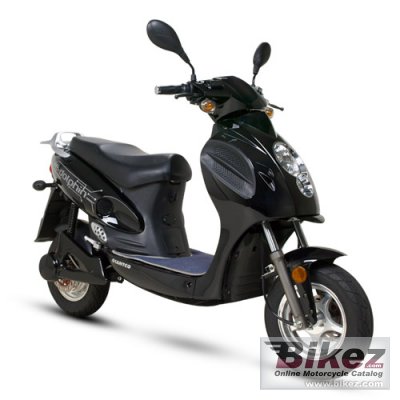

| Model: | Giantco e-Dolphin II | | Year: | 2012 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Engine type: | Electric | | Engine details: | DC Brushless hub motor | | Torque: | 16.00 Nm (1.6 kgf-m or 11.8 ft.lbs) | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Driveline: | CVT | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Oil damped telescopic fork | | Rear suspension: | Oil damped coil spring | | Front brakes: | Single disc | | Front brakes diameter: | 180 mm (7.1 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 180 mm (7.1 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 71.0 kg (156.5 pounds) | | Weight incl. oil, gas, etc: | 101.0 kg (222.7 pounds) | | Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. | | Overall height: | 1,050 mm (41.3 inches) | | Overall length: | 1,980 mm (78.0 inches) | | Overall width: | 700 mm (27.6 inches) | | Wheelbase: | 1,440 mm (56.7 inches) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Black | | Comments: | Range 20 km. 3 x 48V 10Ah LiFePO4 Plug and Run battery. 1.5 h charging time. 5 years or 50,000 km battery life. Made in Hong Kong. | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 12 Giantco e-Dolphin II discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
