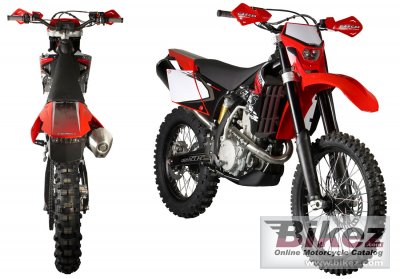

2009 GAS GAS EC 515 FSR specifications, pictures, reviews and rating
Picture credits - GAS GAS. Click to submit more pictures.
|Model:||GAS GAS EC 515 FSR|
|Category:||Enduro / offroad|
|Rating:||73.2 out of 100. Show full rating and compare with other bikes|
|Engine and transmission|
|Displacement:||515.00 ccm (31.43 cubic inches)|
|Engine type:||Single cylinder, four-stroke|
|Bore x stroke:||100.0 x 62.6 mm (3.9 x 2.5 inches)|
|Valves per cylinder:||4|
|Fuel system:||Injection. Kokusan electronic fule injection (Battery less EFI)|
|Ignition:||Integrated in the injection system.|
|Chassis, suspension, brakes and wheels|
|Frame type:||Deltabox build with Cromoly D tubes.|
|Front suspension:||45 mm upside-down fork Marzocchi|
|Front suspension travel:||295 mm (11.6 inches)|
|Rear suspension:||One-piece aluminium swing arm progressive system with Sachs shock absorber|
|Rear suspension travel:||320 mm (12.6 inches)|
|Front tyre dimensions:||90/90-21|
|Rear tyre dimensions:||140/80-18|
|Front brakes:||Single disc|
|Front brakes diameter:||260 mm (10.2 inches)|
|Rear brakes:||Single disc|
|Rear brakes diameter:||220 mm (8.7 inches)|
|Physical measures and capacities|
|Dry weight:||118.0 kg (260.1 pounds)|
|Seat height:||940 mm (37.0 inches) If adjustable, lowest setting.|
|Ground clearance:||370 mm (14.6 inches)|
|Wheelbase:||1,465 mm (57.7 inches)|
|Fuel capacity:||7.50 litres (1.98 gallons)|
|Starter:||Electric & kick|
|Color options:||Red/white, black/white|
|Parts and accessories||Check out parts and accessories from our other partners.|
|Ask questions||Join the 09 GAS GAS EC 515 FSR discussion group.|
|Insurance, loans, tests||Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.|
|Related bikes||List related bikes for comparison of specs|
Buying a bike starts at BikezGet a list of related motorbikes before you buy this GAS GAS. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.
Show any 2009 GAS GAS EC 515 FSR for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.
You are also welcome to read and submit motorcycle reviews.
|Rating sample for this GAS GAS bike|
Offroad capabilities for the 2009 GAS GAS EC 515 FSR:
(79.1 out of 100)
Click here for complete rating. You can also compare bikes.
