| General moped information |
|---|

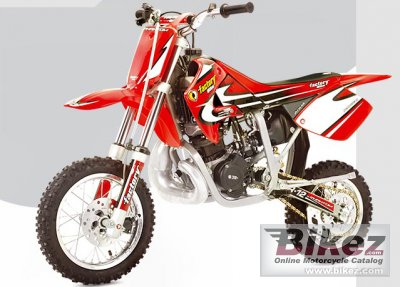

| Model: | Factory Bike Phantom R12 Agua | | Year: | 2008 | | Category: | Minibike, cross | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.80 ccm (3.04 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 2 | | Compression: | 13.0:1 | | Bore x stroke: | 990.6 x 1,000.0 mm (39.0 x 39.4 inches) | | Fuel system: | Carburettor. Dell’Orto 19 M.M | | Ignition: | CDI | | Starter: | Kick | | Lubrication system: | Mixed 2% | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type
final drive: | Chain | | Physical measures |
|---|
| Dry weight: | 43.0 kg (94.8 pounds) | | Seat height: | 670 mm (26.4 inches) If adjustable, lowest setting. | | Overall height: | 950 mm (37.4 inches) | | Overall length: | 1,400 mm (55.1 inches) | | Overall width: | 700 mm (27.6 inches) | | Wheelbase: | 975 mm (38.4 inches) | | Chassis and dimensions |
|---|
| Frame type: | Hardened steel | | Front suspension: | Hydraulic forks, Paioli | | Rear suspension: | Monoshock, gas | | Front tyre dimensions: | 2.50-12 | | Rear tyre dimensions: | 2.50-10 | | Front brakes: | Single disc | | Front brakes diameter: | 165 mm (6.5 inches) | | Rear brakes: | Single disc | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 2.50 litres (0.66 gallons) | | Color options: | Red | | Comments: | Factorybike is a Spanish brand. | | Further information |
|---|
