| General moped information |
|---|

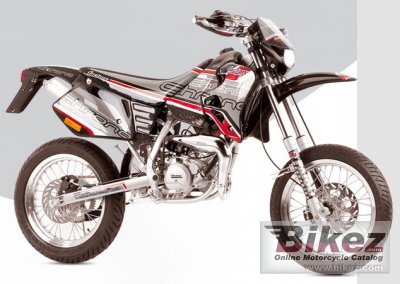

| Model: | Factory Bike Chrono SM50-2 | | Year: | 2008 | | Category: | Super motard | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.70 ccm (3.03 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 2 | | Compression: | 12.0:1 | | Bore x stroke: | 1,000.0 x 990.6 mm (39.4 x 39.0 inches) | | Fuel system: | Carburettor. Dell’Orto PHBN | | Ignition: | Electronic | | Starter: | Kick | | Lubrication system: | Automix | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type
final drive: | Chain | | Clutch: | Multidisc in oil | | Physical measures |
|---|
| Dry weight: | 81.5 kg (179.7 pounds) | | Overall height: | 1,220 mm (48.0 inches) | | Overall length: | 2,070 mm (81.5 inches) | | Overall width: | 810 mm (31.9 inches) | | Chassis and dimensions |
|---|
| Frame type: | Hardened steel CrMo, bolt-on rear section | | Front suspension: | PAIOLI Fork 36 mm/mm | | Rear suspension: | Shock-Absorber PAIOLI | | Front tyre dimensions: | 100/80-17 | | Rear tyre dimensions: | 130/70-18 | | Front brakes: | Single disc. AJP | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 200 mm (7.9 inches) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 7.50 litres (1.98 gallons) | | Comments: | Factorybike is a Spanish brand. Minarelli AM6 engine. | | Further information |
|---|
