| General moped information |
|---|

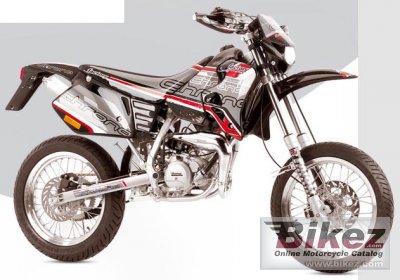

| Model: | Factory Bike Chrono SM50-2 | | Year: | 2007 | | Category: | Super motard | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.70 ccm (3.03 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 2 | | Compression: | 12.0:1 | | Bore x stroke: | 40.3 x 39.0 mm (1.6 x 1.5 inches) | | Fuel system: | Carburettor. Dell’Orto PHBN | | Starter: | Kick | | Lubrication system: | Automix | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type
final drive: | Chain | | Clutch: | Wet multiplate | | Physical measures |
|---|
| Dry weight: | 80.0 kg (176.4 pounds) | | Overall height: | 1,370 mm (53.9 inches) | | Overall length: | 1,990 mm (78.3 inches) | | Overall width: | 810 mm (31.9 inches) | | Wheelbase: | 1,370 mm (53.9 inches) | | Chassis and dimensions |
|---|
| Frame type: | Hardened Steel CrMo. Bolt-on rear section | | Front suspension: | PAIOLI hydraulic 36mm | | Rear suspension: | PAIOLI monoshock | | Front tyre dimensions: | 100/80-17 | | Rear tyre dimensions: | 130/70-18 | | Front brakes: | Single disc | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 200 mm (7.9 inches) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 7.50 litres (1.98 gallons) | | Color options: | Black | | Comments: | Minarelli engine | | Further information |
|---|
