| General information |
|---|

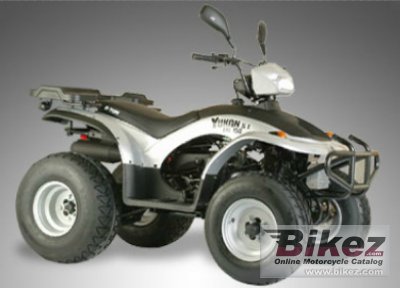

| Model: | E-Ton Yukon ST EXL-150 | | Year: | 2012 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 149.50 ccm (9.12 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Top speed: | 70.0 km/h (43.5 mph) | | Compression: | 9.7:1 | | Bore x stroke: | 57.4 x 57.8 mm (2.3 x 2.3 inches) | | Fuel system: | Carburettor | | Ignition: | C.D.I. | | Cooling system: | Air | Transmission type,
final drive: | Belt | | Driveline: | CVT | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | A-Arm and Adjustable shocks | | Front suspension travel: | 50 mm (2.0 inches) | | Rear suspension: | Swing Arm and Adjustable shocks | | Rear suspension travel: | 85 mm (3.3 inches) | | Front tyre dimensions: | 21/7-10 | | Rear tyre dimensions: | 22/10-10 | | Front brakes: | Double disc. Hydraulic | | Front brakes diameter: | 155 mm (6.1 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 130 mm (5.1 inches) | | Wheels: | BATTERY | | Physical measures and capacities |
|---|
| Dry weight: | 176.0 kg (388.0 pounds) | | Seat height: | 730 mm (28.7 inches) If adjustable, lowest setting. | | Overall height: | 1,065 mm (41.9 inches) | | Overall length: | 1,750 mm (68.9 inches) | | Overall width: | 1,010 mm (39.8 inches) | | Ground clearance: | 130 mm (5.1 inches) | | Wheelbase: | 1,150 mm (45.3 inches) | | Fuel capacity: | 6.50 litres (1.72 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Green , Red , Blue , Silver | | Further information |
|---|
