| General information |
|---|

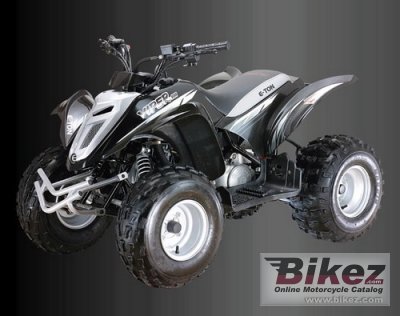

| Model: | E-Ton Viper 90 R | | Year: | 2010 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 88.40 ccm (5.39 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Top speed: | 48.0 km/h (29.8 mph) | | Compression: | 10.6:1 | | Bore x stroke: | 57.4 x 57.8 mm (2.3 x 2.3 inches) | | Fuel system: | Carburettor | | Ignition: | C.D.I. | | Cooling system: | Oil & air | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | A-Arm | | Front suspension travel: | 50 mm (2.0 inches) | | Rear suspension: | Swing arm | | Rear suspension travel: | 75 mm (3.0 inches) | | Front tyre dimensions: | 21/6-10 | | Rear tyre dimensions: | 20/10-9 | | Front brakes: | Expanding brake (drum brake) | | Front brakes diameter: | 85 mm (3.3 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 190 mm (7.5 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 113.0 kg (249.1 pounds) | | Seat height: | 680 mm (26.8 inches) If adjustable, lowest setting. | | Overall height: | 900 mm (35.4 inches) | | Overall length: | 1,500 mm (59.1 inches) | | Overall width: | 850 mm (33.5 inches) | | Ground clearance: | 120 mm (4.7 inches) | | Wheelbase: | 930 mm (36.6 inches) | | Fuel capacity: | 3.60 litres (0.95 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Blue, Pink, Black/Silver | | Comments: | Off-road ATV. | | Further information |
|---|
