09 Ducati Superbike 1198 S specificationsDucati Superbike 1198 S 2009

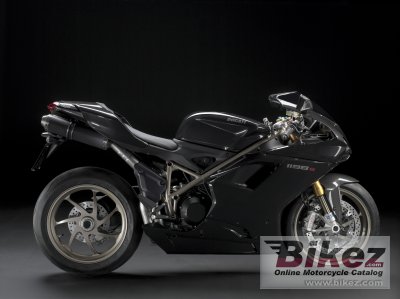

2009 Ducati Superbike 1198 S photo
Picture credits - Ducati. Click to submit more pictures.
   Show big 2009 Ducati Superbike 1198 S imageShow more 2009 Ducati Superbike 1198 S images
2009 Ducati Superbike 1198 S

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Ducati's profilation of this bike
Producing 170hp (125kW) and with a dry weight of just 169kg (372.6lb), the new 1198 S now incorporates more World Superbike technology than ever before by taking the 1198 motor and adding top-of-the-range suspension, lightweight chassis components and a true racing-style traction control system designed for road use.

General information
Model:Ducati Superbike 1198 S
Year:2009
Category:Sport
Rating:67.9 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1198.40 ccm (73.13 cubic inches)
Engine type:V2, four-stroke
Power:170.00 HP (124.1 kW)) @ 9750 RPM
Torque:131.53 Nm (13.4 kgf-m or 97.0 ft.lbs) @ 8000 RPM
Compression:12.7:1
Bore x stroke:106.0 x 67.9 mm (4.2 x 2.7 inches)
Fuel system:Injection. Marelli electronic fuel injection, elliptical throttle bodies
Fuel control:Desmodromic valve control
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Dry multiplate with hydraulic control
Exhaust system:Lightweight 2-1-2 system with catalytic converter and lambda probe. Twin stainless steel mufflers
Chassis, suspension, brakes and wheels
Frame type:Tubular steel Trellis frame in ALS 450
Front suspension:Showa 43mm with TiO fully adjustable upside-down fork
Front suspension travel:127 mm (5.0 inches)
Rear suspension:Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm
Rear suspension travel:127 mm (5.0 inches)
Front tyre dimensions:120/70-ZR17
Rear tyre dimensions:190/55-ZR17
Front brakes:Double disc
Front brakes diameter:330 mm (13.0 inches)
Rear brakes:Single disc
Rear brakes diameter:245 mm (9.6 inches)
Physical measures and capacities
Dry weight:171.0 kg (377.0 pounds)
Power/weight ratio:0.9942 HP/kg
Seat height:820 mm (32.3 inches) If adjustable, lowest setting.
Wheelbase:1,430 mm (56.3 inches)
Fuel capacity:15.50 litres (4.10 gallons)
Other specifications
Color options:Rosso (Nero/Grigio), Bianco perla (Nero/Grigio)
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 09 Ducati Superbike 1198 S discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2009 Ducati Superbike 1198 S or advertise any other MC for sale. You can list all 2009 Ducati Superbike 1198 S available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes.

Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this Ducati bike
Fun-factor for the 2009 Ducati Superbike 1198 S:


(86.3 out of 100)

Click here for complete rating. You can also compare bikes.
