09 Ducati Superbike 1198 specificationsDucati Superbike 1198 2009

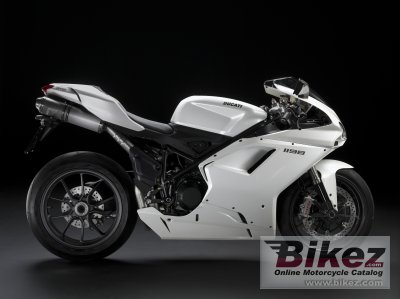

2009 Ducati Superbike 1198 photo
Picture credits - Ducati. Click to submit more pictures.
   Show big 2009 Ducati Superbike 1198 imageShow more 2009 Ducati Superbike 1198 images
2009 Ducati Superbike 1198

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Ducati's profilation of this bike
The 1198 is a race bike, pure and simple. It is immediately recognisable for its purposeful, no-nonsense attitude. Performance is first and foremost in every detail.

General information
Model:Ducati Superbike 1198
Year:2009
Category:Sport
Rating:72.6 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1198.40 ccm (73.13 cubic inches)
Engine type:V2, four-stroke
Power:170.00 HP (124.1 kW)) @ 9750 RPM
Torque:131.53 Nm (13.4 kgf-m or 97.0 ft.lbs) @ 8000 RPM
Compression:12.7:1
Bore x stroke:106.0 x 67.9 mm (4.2 x 2.7 inches)
Fuel system:Injection. Marelli electronic fuel injection, elliptical throttle bodies
Fuel control:Desmodromic valve control
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Dry multiplate with hydraulic control
Exhaust system:Lightweight 2-1-2 system with catalytic converter and lambda probe. Twin stainless steel mufflers
Chassis, suspension, brakes and wheels
Frame type:Tubular steel Trellis frame in ALS 450
Rake (fork angle):24.5°
Front suspension:Showa 43mm with TiO fully adjustable upside-down fork
Front suspension travel:127 mm (5.0 inches)
Rear suspension:Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm
Rear suspension travel:127 mm (5.0 inches)
Front tyre dimensions:120/70-ZR17
Rear tyre dimensions:190/55-ZR17
Front brakes:Double disc
Front brakes diameter:330 mm (13.0 inches)
Rear brakes:Single disc
Rear brakes diameter:245 mm (9.6 inches)
Physical measures and capacities
Dry weight:171.0 kg (377.0 pounds)
Power/weight ratio:0.9942 HP/kg
Seat height:820 mm (32.3 inches) If adjustable, lowest setting.
Wheelbase:1,430 mm (56.3 inches)
Fuel capacity:15.50 litres (4.10 gallons)
Other specifications
Starter:Electric
Color options:Rosso (Nero/Grigio), Bianco perla (Nero/Grigio)
