| General information |
|---|

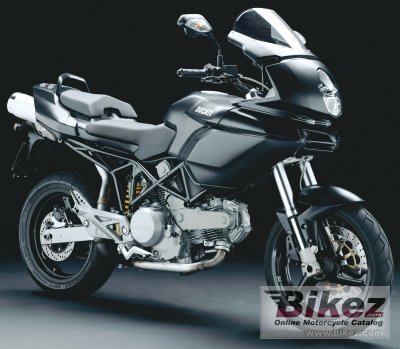

| Model: | Ducati Multistrada 620 Dark |
| Year: | 2005 |
| Category: | Allround |
| Rating: | 70.9 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 618.00 ccm (37.71 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 46.40 HP (33.9 kW)) @ 9500 RPM |
| Torque: | 57.00 Nm (5.8 kgf-m or 42.0 ft.lbs) @ 6750 RPM |
| Compression: | 10.5:1 |
| Bore x stroke: | 80.0 x 61.5 mm (3.1 x 2.4 inches) |
| Fuel system: | Injection. Marelli electronic fuel injection, 45 mm throttle body |
| Valves per cylinder: | 2 |
| Fuel control: | Desmodromic valve control |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Clutch: | APTC wet multiplate with hydraulic control |
| Physical measures |
|---|
| Dry weight: | 183.0 kg (403.4 pounds) |
| Seat height: | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,459 mm (57.4 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Tubular steel trellis |
| Rake (fork angle): | 24.0° |
| Front suspension: | Marzocchi 43 mm upside-down fork |
| Front suspension travel: | 130 mm (5.1 inches) |
| Rear suspension: | Progressive linkage with adjustable Sachs monoshock. Steel double-sided swingarm |
| Rear suspension travel: | 148 mm (5.8 inches) |
| Front tyre dimensions: | 120/60-ZR17 |
| Rear tyre dimensions: | 160/60-ZR17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Exhaust system: | Single steel muffler and pipe system with catalytic converter |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.2536 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 15.00 litres (3.96 gallons) |
