12 Ducati Monster 696 specificationsDucati Monster 696 2012

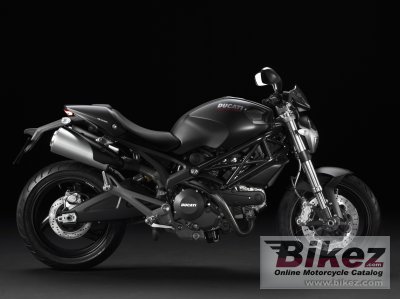

2012 Ducati Monster 696 photo
Picture credits - Ducati. Click to submit more pictures.
   Show big 2012 Ducati Monster 696 imageShow more 2012 Ducati Monster 696 images
2012 Ducati Monster 696

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Ducati's profilation of this bike
The ´less-is-more´ philosophy behind all Monsters underlines Ducati´s never-ending pursuit of genuinely compact, high performance motorcycles, but these new models have succeeded in being even more ´pared down´ than their predecessors.

General information
Model:Ducati Monster 696
Year:2012
Category:Naked bike
Rating:55 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:696.00 ccm (42.47 cubic inches)
Engine type:V2, four-stroke
Engine details:L-Twin cylinder
Power:78.85 HP (57.6 kW)) @ 9000 RPM
Torque:50.60 Nm (5.2 kgf-m or 37.3 ft.lbs) @ 7750 RPM
Compression:10.7:1
Bore x stroke:88.0 x 57.2 mm (3.5 x 2.3 inches)
Valves per cylinder:2
Fuel system:Injection. Siemens electronic fuel injection, 45mm throttle body
Fuel control:Desmodromic valve control
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:APTC wet multiplate with hydraulic control
Driveline:Chain; Front sprocket 15; Rear sprocket 45
Emission details:Euro 3. Follows the US Federal Regulation
Exhaust system:2 aluminum mufflers
Chassis, suspension, brakes and wheels
Frame type:Tubular steel Trellis frame
Rake (fork angle):24.0°
Front suspension:Marzocchi 43mm upside-down forks
Front suspension travel:120 mm (4.7 inches)
Rear suspension:Progressive linkage with preload and rebound Sachs adjustable monoshock
Rear suspension travel:148 mm (5.8 inches)
Front tyre dimensions:120/60-17
Rear tyre dimensions:160/60-17
Front brakes:Double disc. Optional ABS
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc. Optional ABS
Rear brakes diameter:245 mm (9.6 inches)
Physical measures and capacities
Dry weight:161.0 kg (354.9 pounds)
Power/weight ratio:0.4898 HP/kg
Seat height:770 mm (30.3 inches) If adjustable, lowest setting.
Wheelbase:1,450 mm (57.1 inches)
Fuel capacity:15.00 litres (3.96 gallons)
Other specifications
Starter:Electric
Instruments:Digital unit
Factory warranty:2 years unlimited mileage
Color options:Red, Black, White, Various Monster Art multicolour paints.
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 12 Ducati Monster 696 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 Ducati Monster 696 or advertise any other MC for sale. You can list all available Ducati Monster 696 bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this Ducati bike
Value for money for the 2012 Ducati Monster 696:


(54.0 out of 100)

Click here for complete rating. You can also compare bikes.
