Ducati 749 R 20042004 Ducati 749 R specifications, pictures, reviews and rating |

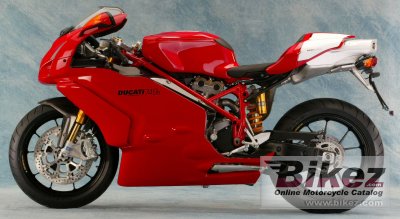

2004 Ducati 749 R. Image credits - Ducati.
| General information | |
|---|---|
| Motorcycle name | Ducati 749 R |
| Year of manufacture | 2004 |
| Type | Sport |
| Rating | 3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 749.0 ccm (45.70 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 116.0 HP (84.7 kW)) @ 10500 RPM |
| Torque | 80.0 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 8500 RPM |
| Compression | 12.7:1 |
| Bore x stroke | 94.0 x 54.0 mm (3.7 x 2.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Desmodromic valve control |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular ALS450 steel trellis |
| Rake (fork angle) | 24.0° |
| Front suspension | Öhlins upside-down fully adjustable fork with TiN surface treatment, for radial calipers |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Progressive linkage with fully adjustable Öhlins monoshock |
| Rear wheel travel | 128 mm (5.0 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/50-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 192.0 kg (423.3 pounds) |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 2095 mm (82.5 inches) |
| Wheelbase | 1420 mm (55.9 inches) |
| Fuel capacity | 18.30 litres (4.83 US gallons) |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Other specifications | |
| Color options | Red. |
| Comments | For those focused directly on competition, the 749R is the ideal solution. It is a perfect racing machine, with a Testastretta series engine and chassis specifically developed to ensure top competitiveness on the racetrack. The considerable use of special materials, from magnesium to carbon fiber to titanium, make this motorcycle extra-light and extremely effective. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Ducati 749 R discussion group or the general Ducati discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2004 Ducati 749 R or advertise any other MC for sale. You can list all 2004 Ducati 749 R available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this Ducati bike | |
Racing track capabilities for the 2004 Ducati 749 R:  (81.2 out of 100)Click here for complete rating. |
|
