| General moped information |
|---|

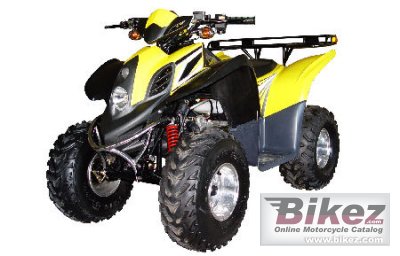

| Model: | Dinli Shrike DL606 50 |
| Year: | 2010 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 4.50 HP (3.3 kW)) @ 7000 RPM |
| Torque: | 5.10 Nm (0.5 kgf-m or 3.8 ft.lbs) @ 6000 RPM |
| Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor |
| Lubrication system: | Oil injection |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Single A-arm |
| Rear suspension: | Swing Arm |
| Front tyre dimensions: | 19/7-8 |
| Rear tyre dimensions: | 18/10-8 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 108.0 kg (238.1 pounds) |
| Power/weight ratio: | 0.0417 HP/kg |
| Seat height: | 749 mm (29.5 inches) If adjustable, lowest setting. |
| Overall height: | 968 mm (38.1 inches) |
| Overall length: | 1,476 mm (58.1 inches) |
| Overall width: | 881 mm (34.7 inches) |
| Fuel capacity: | 5.20 litres (1.37 gallons) |
| Oil capacity: | 1.80 litres (0.12 quarts) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Color options: | Yellow, Blue, Red |
| Comments: | Also available with 110 and 150 cc engines. |
