| General information |
|---|

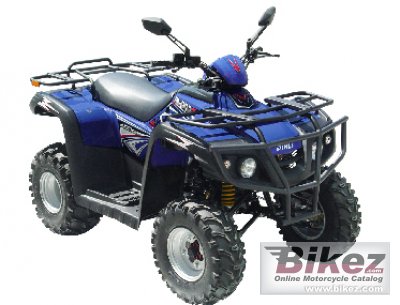

| Model: | Dinli DL 902 | | Year: | 2012 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 448.00 ccm (27.34 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Engine details: | Hemispherical Combustion Chamber | | Power: | 45.06 HP (32.9 kW)) @ 8250 RPM | | Torque: | 41.20 Nm (4.2 kgf-m or 30.4 ft.lbs) @ 7500 RPM | | Top speed: | 105.0 km/h (65.2 mph) | | Compression: | 10.8:1 | | Fuel system: | Carburettor. BSR42 | | Fuel control: | DOHC | | Ignition: | CDI | | Lubrication system: | Oil Pump | | Gearbox: | 5-speed | Transmission type,
final drive: | Belt | | Clutch: | Manual Release, Multi-Plate | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Dual A-arm | | Front suspension travel: | 168 mm (6.6 inches) | | Rear suspension: | Swing Arm | | Rear suspension travel: | 197 mm (7.8 inches) | | Front tyre dimensions: | 22/8-10 | | Rear tyre dimensions: | 22/11-9 | | Front brakes: | Double disc | | Rear brakes: | Single disc | | Physical measures and capacities |
|---|
| Dry weight: | 220.0 kg (485.0 pounds) | | Power/weight ratio: | 0.2048 HP/kg | | Seat height: | 870 mm (34.3 inches) If adjustable, lowest setting. | | Overall height: | 1,110 mm (43.7 inches) | | Overall length: | 1,942 mm (76.5 inches) | | Overall width: | 1,110 mm (43.7 inches) | | Ground clearance: | 310 mm (12.2 inches) | | Wheelbase: | 1,260 mm (49.6 inches) | | Fuel capacity: | 12.80 litres (3.38 gallons) | | Oil capacity: | 1.80 litres (0.12 quarts) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Metallic Blue/Metallic Orange/Metallic Black/Metallic Red | | Comments: | Made in Taiwan. | | Further information |
|---|
