| General information |
|---|

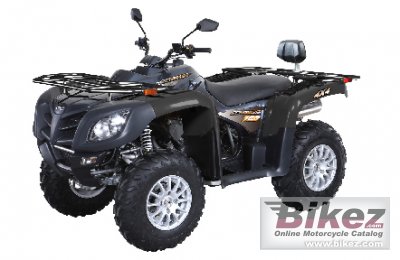

| Model: | Dinli DL 700 | | Year: | 2011 | | Category: | ATV | | Rating: | 75 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 694.00 ccm (42.35 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 40.00 HP (29.2 kW)) @ 6000 RPM | | Torque: | 48.00 Nm (4.9 kgf-m or 35.4 ft.lbs) @ 4500 RPM | | Compression: | 10.0:1 | | Bore x stroke: | 72.7 x 70.0 mm (2.9 x 2.8 inches) | | Fuel system: | Carburettor. BSR-42 | | Fuel control: | DOHC | | Lubrication system: | Forced Pressure and Wet Sump | | Gearbox: | Automatic | Transmission type,
final drive: | Shaft drive (cardan) | | Clutch: | Centrifugal Clutch | | Driveline: | 2WD / 4WD/ Front differential locked 4WD. C.V.T with Reverse and 2 Speed Sub-Transmission. | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Dual A-arm | | Rear suspension: | Dual A-arm | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 20/10-12 | | Front brakes: | Double disc | | Rear brakes: | Single disc | | Wheels: | Home | | Physical measures and capacities |
|---|
| Dry weight: | 298.0 kg (657.0 pounds) | | Power/weight ratio: | 0.1342 HP/kg | | Seat height: | 916 mm (36.1 inches) If adjustable, lowest setting. | | Overall height: | 1,120 mm (44.1 inches) | | Overall length: | 2,208 mm (86.9 inches) | | Overall width: | 1,211 mm (47.7 inches) | | Ground clearance: | 295 mm (11.6 inches) | | Wheelbase: | 1,305 mm (51.4 inches) | | Fuel capacity: | 20.00 litres (5.28 gallons) | | Oil capacity: | 1.80 litres (0.12 quarts) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Metallic Black, Metallic Red, Metallic Orange, Metallic Yellow | | Further information |
|---|
