| DF Motor's profilation of this bike |
| The model is specially designed for use in northern territory across the world. There is a temperature controller close to carburetor to adjust temperature and to heat up so that the scooter can turn on easily in the winter season. |
| General moped information |
|---|

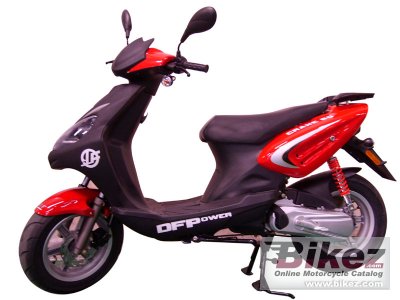

| Model: | DF Motor Crane 50 | | Year: | 2007 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.20 ccm (3.00 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 2 | | Power: | 4.15 HP (3.0 kW)) @ 7000 RPM | | Torque: | 4.40 Nm (0.4 kgf-m or 3.2 ft.lbs) @ 5000 RPM | | Fuel system: | Carburettor | | Ignition: | CDI | | Starter: | Electric & kick | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type
final drive: | Belt | | Physical measures |
|---|
| Dry weight: | 90.0 kg (198.4 pounds) | | Overall height: | 1,165 mm (45.9 inches) | | Overall length: | 1,830 mm (72.0 inches) | | Overall width: | 705 mm (27.8 inches) | | Ground clearance: | 135 mm (5.3 inches) | | Wheelbase: | 1,290 mm (50.8 inches) | | Chassis and dimensions |
|---|
| Front brakes: | Single disc | | Front brakes diameter: | 190 mm (7.5 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 110 mm (4.3 inches) | | Exhaust system: | Inox | | Speed and acceleration |
|---|
| Power/weight ratio: | 0.0461 HP/kg | | Other specifications |
|---|
| Fuel consumption pr. 10 km (6.2 miles): | 2.50 litres (0.66 gallons) | | Further information |
|---|
