| General information |
|---|

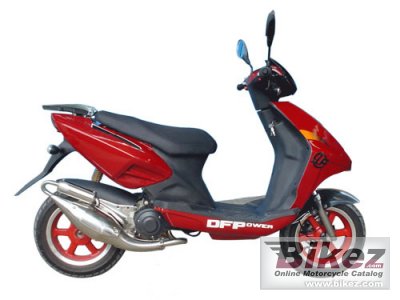

| Model: | DF Motor Crane 125 | | Year: | 2007 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 2 | | Power: | 7.37 HP (5.4 kW)) | | Torque: | 8.00 Nm (0.8 kgf-m or 5.9 ft.lbs) | | Compression: | 9.2:1 | | Bore x stroke: | 52.4 x 57.8 mm (2.1 x 2.3 inches) | | Ignition: | CDI | | Starter: | Electric & kick | | Lubrication system: | Pressure and splash | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type
final drive: | Belt | | Physical measures |
|---|
| Dry weight: | 109.0 kg (240.3 pounds) | | Overall height: | 1,131 mm (44.5 inches) | | Overall length: | 1,839 mm (72.4 inches) | | Overall width: | 664 mm (26.1 inches) | | Ground clearance: | 135 mm (5.3 inches) | | Wheelbase: | 1,270 mm (50.0 inches) | | Chassis and dimensions |
|---|
| Front suspension: | Telescopic | | Rear suspension: | Swing Arm | | Front tyre dimensions: | 120/70-12 | | Rear tyre dimensions: | 130/70-12 | | Front brakes: | Single disc | | Rear brakes: | Expanding brake (drum brake) | | Speed and acceleration |
|---|
| Power/weight ratio: | 0.0676 HP/kg | | Other specifications |
|---|
| Fuel capacity: | 6.80 litres (1.80 gallons) | | Fuel consumption pr. 10 km (6.2 miles): | 3.00 litres (0.79 gallons) | | Comments: | EEC Homologation. Model id: DF125T-3. | | Further information |
|---|
