10 Derbi Terra 125 specificationsDerbi Terra 125 2010

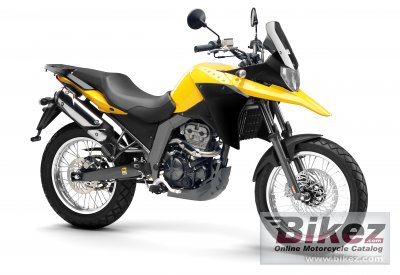

2010 Derbi Terra 125 photo
Picture credits - Derbi. Click to submit more pictures.
   Show big 2010 Derbi Terra 125 image
2010 Derbi Terra 125

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Derbi's profilation of this bike
The city constrains you. Look for new dimensions. Off road. The best dual-sport bike of its class, with the new Derbi 125 4-stroke 4V-engine. The answer to the impossible.

General information
Model:Derbi Terra 125
Year:2010
Category:Allround
Rating:68.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:124.20 ccm (7.58 cubic inches)
Engine type:Single cylinder, four-stroke
Power:15.00 HP (10.9 kW)) @ 9250 RPM
Compression:12.0:1
Bore x stroke:58.0 x 47.0 mm (2.3 x 1.9 inches)
Valves per cylinder:4
Fuel system:Carburettor. 30 mm
Fuel control:DOHC
Ignition:CDI
Lubrication system:Dry sump with integrated oil deposit
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Multi-plate in oil bath
Exhaust system:Euro 3
Chassis, suspension, brakes and wheels
Front suspension:Hydraulic fork
Front suspension travel:150 mm (5.9 inches)
Rear suspension:Mono-shock with adjustable spring pre-load.
Front tyre dimensions:100/90-18
Rear tyre dimensions:130/80-17
Front brakes:Single disc
Front brakes diameter:280 mm (11.0 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Dry weight:117.0 kg (257.9 pounds)
Weight incl. oil, gas, etc:130.0 kg (286.6 pounds)
Power/weight ratio:0.1282 HP/kg
Seat height:795 mm (31.3 inches) If adjustable, lowest setting.
Overall length:2,144 mm (84.4 inches)
Overall width:815 mm (32.1 inches)
Wheelbase:1,440 mm (56.7 inches)
Fuel capacity:12.00 litres (3.17 gallons)
Other specifications
Starter:Electric
Color options:Black
Comments:Derbi is a Spanish brand
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 10 Derbi Terra 125 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Derbi Terra 125 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Derbi bike
Value for money for the 2010 Derbi Terra 125:


(71.7 out of 100)

Click here for complete rating. You can also compare bikes.
