09 Derbi Terra 125 specificationsDerbi Terra 125 2009

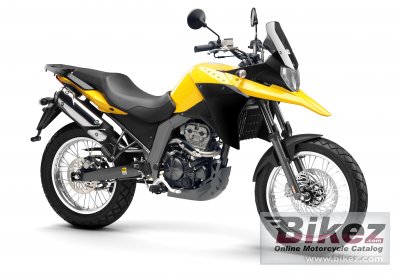

2009 Derbi Terra 125 photo
Picture credits - Derbi. Click to submit more pictures.
   Show big 2009 Derbi Terra 125 imageShow more 2009 Derbi Terra 125 images
2009 Derbi Terra 125

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Derbi's profilation of this bike
Big wheels to overcome every obstacle; its cycle parts are fast and stable for perfect riding: only a few of the ingredients of this perfect mix, both for daily use and extra-urban trips.

General information
Model:Derbi Terra 125
Year:2009
Category:Allround
Rating:67.9 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:124.20 ccm (7.58 cubic inches)
Engine type:Single cylinder, four-stroke
Power:15.00 HP (10.9 kW))
Bore x stroke:58.0 x 47.0 mm (2.3 x 1.9 inches)
Valves per cylinder:4
Fuel system:Carburettor. 30 mm
Ignition:CDI
Lubrication system:Dry sump with integrated oil deposit
Cooling system:Liquid
Gearbox:6-speed
Clutch:Multi-plate in oil bath
Exhaust system:Euro III
Chassis, suspension, brakes and wheels
Front suspension:Hydraulic fork
Front suspension travel:150 mm (5.9 inches)
Rear suspension:Mono-shock with adjustable spring pre-load.
Front tyre dimensions:100/90-18
Rear tyre dimensions:130/80-17
Front brakes:Single disc
Front brakes diameter:280 mm (11.0 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Dry weight:117.0 kg (257.9 pounds)
Power/weight ratio:0.1282 HP/kg
Seat height:795 mm (31.3 inches) If adjustable, lowest setting.
Overall height:1,260 mm (49.6 inches)
Overall length:2,144 mm (84.4 inches)
Overall width:815 mm (32.1 inches)
Wheelbase:1,440 mm (56.7 inches)
Fuel capacity:12.00 litres (3.17 gallons)
Other specifications
Starter:Electric
Color options:Blue, yellow, red
Comments:Derbi is a Soanish brand
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 09 Derbi Terra 125 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Derbi Terra 125 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Derbi bike
Reliability for the 2009 Derbi Terra 125:


(78.6 out of 100)

Click here for complete rating. You can also compare bikes.
