Derbi Supermotard Racer 2005

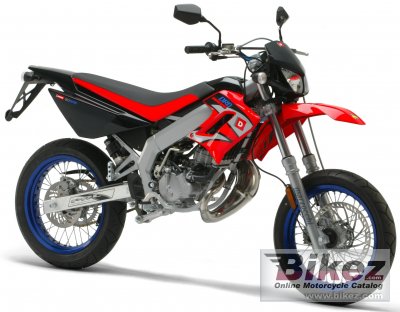

Picture credits - Derbi. Click to submit more pictures.

2005 Derbi Supermotard Racer

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds

Tip a friend
List related bikes

General moped information
Model:	Derbi Supermotard Racer
Year:	2005
Category:	Super motard
Rating:	74.7 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	49.90 ccm (3.04 cubic inches)
Engine type:	Single cylinder, two-stroke
Compression:	13.0:1
Bore x stroke:	39.9 x 40.0 mm (1.6 x 1.6 inches)
Fuel system:	Carburettor. Dell´Orto PHVA-14
Ignition:	C.D.I.
Lubrication system:	Oil pump
Cooling system:	Liquid
Gearbox:	6-speed
Transmission type, final drive:	Chain
Clutch:	Multi-disc
Chassis, suspension, brakes and wheels
Front suspension:	Hydraulic fork, 36 mm
Front suspension travel:	170 mm (6.7 inches)
Rear suspension:	Lineal gas single absorber
Rear suspension travel:	50 mm (2.0 inches)
Front tyre dimensions:	100/80-17
Rear tyre dimensions:	130/80-17
Front brakes:	Single disc
Front brakes diameter:	220 mm (8.7 inches)
Rear brakes:	Single disc
Rear brakes diameter:	180 mm (7.1 inches)
Physical measures and capacities
Overall height:	1,300 mm (51.2 inches)
Overall length:	2,050 mm (80.7 inches)
Overall width:	695 mm (27.4 inches)
Wheelbase:	1,345 mm (53.0 inches)
Fuel capacity:	5.50 litres (1.45 gallons)
Other specifications
Starter:	Kick
Further information
Parts and accessories	Check out parts and accessories from our other partners.
Ask questions	Join the 05 Derbi Supermotard Racer discussion group.
Insurance, loans, tests	Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs

Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Derbi. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the moped's reliability, repair costs, etc.

Show any 2005 Derbi Supermotard Racer for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such mopeds are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.

Rating sample for this Derbi moped
Engine performance for the 2005 Derbi Supermotard Racer: (79.1 out of 100) Click here for complete rating. You can also compare bikes.
