| Derbi's profilation of this bike |
| Get ready to experience strong emotions. Get ready to have fun as you never imagined you could have it before. |
| General information |
|---|

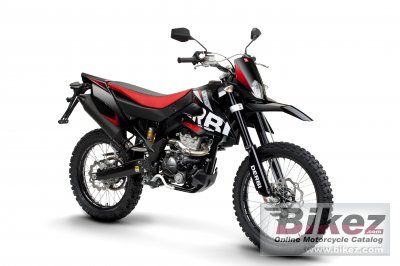

| Model: | Derbi Senda DRD 125 4T 4V R | | Year: | 2010 | | Category: | Enduro / offroad | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 124.20 ccm (7.58 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 15.00 HP (10.9 kW)) @ 9250 RPM | | Compression: | 12.0:1 | | Bore x stroke: | 58.0 x 47.0 mm (2.3 x 1.9 inches) | | Valves per cylinder: | 4 | | Fuel system: | Carburettor. 30 mm | | Ignition: | CDI | | Lubrication system: | Dry sump | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type,
final drive: | Chain | | Clutch: | Multi-plate in oil bath | | Exhaust system: | Euro 3 | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double steel beam | | Front suspension: | Upside down fork | | Front suspension travel: | 245 mm (9.6 inches) | | Rear suspension: | Progressive linkage monoshock with separate gas tank | | Rear suspension travel: | 230 mm (9.1 inches) | | Front tyre dimensions: | 90/90-21 | | Rear tyre dimensions: | 120/80-18 | | Front brakes: | Single disc. Wave | | Front brakes diameter: | 260 mm (10.2 inches) | | Rear brakes: | Single disc. Wave | | Rear brakes diameter: | 220 mm (8.7 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 120.0 kg (264.6 pounds) | | Weight incl. oil, gas, etc: | 124.0 kg (273.4 pounds) | | Power/weight ratio: | 0.1250 HP/kg | | Seat height: | 905 mm (35.6 inches) If adjustable, lowest setting. | | Overall length: | 2,188 mm (86.1 inches) | | Overall width: | 808 mm (31.8 inches) | | Wheelbase: | 1,443 mm (56.8 inches) | | Fuel capacity: | 7.50 litres (1.98 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Blue/white | | Comments: | Spanish bike. | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 10 Derbi Senda DRD 125 4T 4V R discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
