| Derbi's profilation of this bike |
| Derbi pays homage to the legendary racing tradition of its “Red Bullets”, winners of 10 World Championships in the 50cc, 80cc and 125 cc categories. With this in mind, Derbi have dedicated this new Euro3 version of the Mulhacén Café 659 to the “12+1 World Champion” Angel Nieto. |
| General information |
|---|

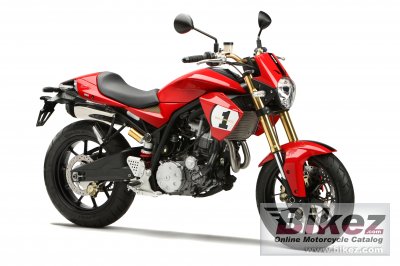

| Model: | Derbi Mulhacen Cafe 659 A. Nieto | | Year: | 2010 | | Category: | Naked bike | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 659.70 ccm (40.25 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 10.0:1 | | Bore x stroke: | 100.0 x 84.0 mm (3.9 x 3.3 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. Nippondenso electronic injection with second air system,44mm throttle valve. | | Ignition: | Electronic CDI | | Lubrication system: | Dry sump | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Multi-plate | | Exhaust system: | Euro III | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular High Tensile Steel | | Front suspension: | 43 mm. Upside-down fork. | | Front suspension travel: | 120 mm (4.7 inches) | | Rear suspension: | Hydraulic progressive linkage monoshock. | | Rear suspension travel: | 120 mm (4.7 inches) | | Front tyre dimensions: | 110/80-17 | | Rear tyre dimensions: | 150/70-17 | | Front brakes: | Single disc | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 245 mm (9.6 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 164.0 kg (361.6 pounds) | | Weight incl. oil, gas, etc: | 179.0 kg (394.6 pounds) | | Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. | | Overall height: | 1,072 mm (42.2 inches) | | Overall length: | 2,120 mm (83.5 inches) | | Overall width: | 800 mm (31.5 inches) | | Wheelbase: | 1,386 mm (54.6 inches) | | Fuel capacity: | 13.00 litres (3.43 gallons) | | Oil capacity: | 1.00 litres (0.07 quarts) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Red/black | | Comments: | Spanish made bike. Yamaha-Minarelli engine. Limited edition named after Angel Nieto. | | Further information |
|---|
