| Derbi's profilation of this bike |
| We are facing a synthesis between the romanticism and the values of a different era, casting an eye at the flat-track and the American dirt track. |
| General information |
|---|

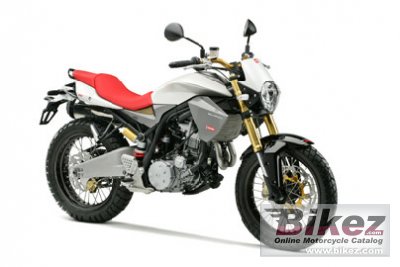

| Model: | Derbi Mulhacen 659 | | Year: | 2009 | | Category: | Naked bike | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 659.70 ccm (40.25 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 10.0:1 | | Bore x stroke: | 100.0 x 84.0 mm (3.9 x 3.3 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. Nippondenso electronic injection with second air system,44mm throttle valve. | | Ignition: | CDI | | Lubrication system: | Dry sump | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Multi-plate | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | 43 mm. Upside-down fork. | | Front suspension travel: | 120 mm (4.7 inches) | | Rear suspension: | Hydraulic progressive linkage monoshock. | | Rear suspension travel: | 120 mm (4.7 inches) | | Front tyre dimensions: | 110/80-18 | | Rear tyre dimensions: | 150/70-18 | | Front brakes: | Single disc. Wave disc with radial mounted caliper | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 245 mm (9.6 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 165.0 kg (363.8 pounds) | | Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. | | Overall height: | 1,072 mm (42.2 inches) | | Overall length: | 2,120 mm (83.5 inches) | | Overall width: | 750 mm (29.5 inches) | | Wheelbase: | 1,386 mm (54.6 inches) | | Fuel capacity: | 13.00 litres (3.43 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | White | | Comments: | Derbi is a Spanish brand. | | Further information |
|---|
