| Derbi's profilation of this bike |
| An unrivalled concentration of technology, reliability and economy of use. The most powerful of its class in a compact fashionable style. All these innovations enable it to meet the Euro 3 obligations for atmospheric and acoustic pollution emissions |
| General information |
|---|

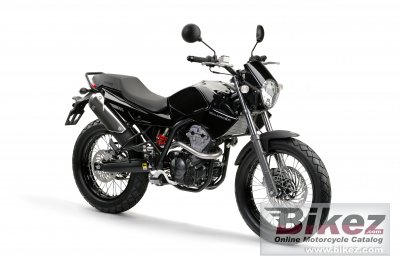

| Model: | Derbi Mulhacen 125 | | Year: | 2012 | | Category: | Naked bike | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | Euro 3177. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 124.20 ccm (7.58 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 15.00 HP (10.9 kW)) @ 9250 RPM | | Compression: | 12.0:1 | | Bore x stroke: | 58.0 x 47.0 mm (2.3 x 1.9 inches) | | Valves per cylinder: | 4 | | Fuel system: | Carburettor. 30 mm | | Fuel control: | DOHC | | Lubrication system: | Dry sump | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type,
final drive: | Chain | | Clutch: | Multi-plate in oil bath | | Emission details: | Euro III | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular High Tensile Steel | | Front suspension: | 37 hydraulic fork. | | Front suspension travel: | 130 mm (5.1 inches) | | Rear suspension: | Mono-shock. Double Arm High Tensile Steel swing arm | | Rear suspension travel: | 130 mm (5.1 inches) | | Front tyre dimensions: | 100/90-18 | | Rear tyre dimensions: | 130/80-17 | | Front brakes: | Single disc | | Front brakes diameter: | 280 mm (11.0 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 220 mm (8.7 inches) | | Wheels: | Spoked | | Physical measures and capacities |
|---|
| Dry weight: | 110.0 kg (242.5 pounds) | | Power/weight ratio: | 0.1364 HP/kg | | Seat height: | 750 mm (29.5 inches) If adjustable, lowest setting. | | Overall height: | 1,065 mm (41.9 inches) | | Overall length: | 1,976 mm (77.8 inches) | | Overall width: | 750 mm (29.5 inches) | | Wheelbase: | 1,326 mm (52.2 inches) | | Fuel capacity: | 11.00 litres (2.91 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Seat: | Dual | | Color options: | Black, red, white, yellow, gray | | Comments: | Spanish scrambler. | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 12 Derbi Mulhacen 125 discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
