10 Derbi Atlantis 50 4T specificationsDerbi Atlantis 50 4T 2010

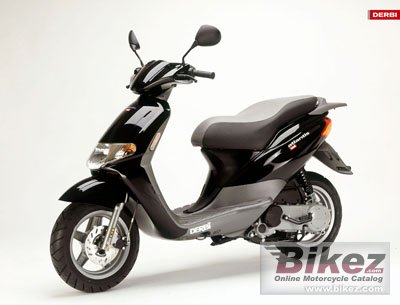

2010 Derbi Atlantis 50 4T photo
Picture credits - Derbi. Click to submit more pictures.
2010 Derbi Atlantis 50 4T

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds

Tip a friend
List related bikes



Derbi's profilation of this bike
At the Rhythm of New Times. The scooter Derbi Atlantis has made its name because of its balance and versatility. A wide range of drivers already appreciate its different and at the same time complementary values, like its elegance and comfort.

General moped information
Model:Derbi Atlantis 50 4T
Year:2010
Category:Scooter
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement:49.90 ccm (3.04 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:11.5:1
Bore x stroke:39.0 x 41.8 mm (1.5 x 1.6 inches)
Fuel system:Carburettor. 18 mm
Lubrication system:System oil pump
Cooling system:Air
Gearbox:Automatic
Transmission type,
final drive:
Belt
Clutch:Automatic
Chassis, suspension, brakes and wheels
Front suspension:25 mm hydraulic fork.
Front suspension travel:65 mm (2.6 inches)
Rear suspension:Monoshock.
Rear suspension travel:65 mm (2.6 inches)
Front tyre dimensions:120/70-12
Rear tyre dimensions:120/70-12
Front brakes:Single disc
Front brakes diameter:200 mm (7.9 inches)
Rear brakes:Expanding brake (drum brake)
Rear brakes diameter:110 mm (4.3 inches)
Physical measures and capacities
Dry weight:93.0 kg (205.0 pounds)
Weight incl. oil, gas, etc:102.0 kg (224.9 pounds)
Seat height:795 mm (31.3 inches) If adjustable, lowest setting.
Overall length:1,810 mm (71.3 inches)
Wheelbase:1,265 mm (49.8 inches)
Fuel capacity:7.10 litres (1.88 gallons)
Reserve fuel capacity:1.30 litres (0.34 gallons)
Other specifications
Starter:Electric & kick
Color options:Silver, black, blue, yellow
Comments:Derbi scooters are made in Spain.
