| Derbi's profilation of this bike |
| Enjoy every moment. Make each instant easier by putting all the possibilities that offers you the Atlantis at your service. With its compact qualities, its elegant forms and forceful acceleration, the Atlantis is the leader of urban mobility. |
| General moped information |
|---|

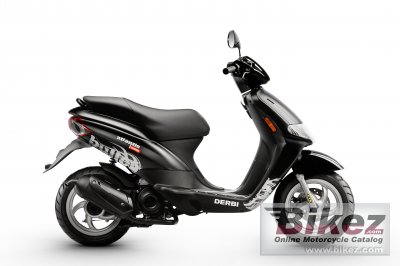

| Model: | Derbi Atlantis 50 2T | | Year: | 2012 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | Euro 1538. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 49.38 ccm (3.01 cubic inches) | | Engine type: | Single cylinder, two-stroke | | Compression: | 10.5:1 | | Fuel system: | Carburettor. 17.5 mm | | Ignition: | Electronic C.D.I. | | Lubrication system: | Mechanical oil pump | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Clutch: | Automated | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Hydraulic fork. | | Front suspension travel: | 65 mm (2.6 inches) | | Rear suspension: | Monoshock. | | Rear suspension travel: | 65 mm (2.6 inches) | | Front tyre dimensions: | 120/70-12 | | Rear tyre dimensions: | 120/70-12 | | Front brakes: | Single disc | | Front brakes diameter: | 200 mm (7.9 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 110 mm (4.3 inches) | | Wheels: | 5-spoke | | Physical measures and capacities |
|---|
| Dry weight: | 86.0 kg (189.6 pounds) | | Weight incl. oil, gas, etc: | 95.0 kg (209.4 pounds) | | Seat height: | 790 mm (31.1 inches) If adjustable, lowest setting. | | Overall height: | 1,115 mm (43.9 inches) | | Overall length: | 1,810 mm (71.3 inches) | | Wheelbase: | 1,265 mm (49.8 inches) | | Fuel capacity: | 7.10 litres (1.88 gallons) | | Oil capacity: | 1.50 litres (0.10 quarts) | | Other specifications |
|---|
| Starter: | Electric | | Seat: | Dual | | Color options: | Red, black, white | | Comments: | Spanish made scooter | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 12 Derbi Atlantis 50 2T discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
