| General moped information |
|---|

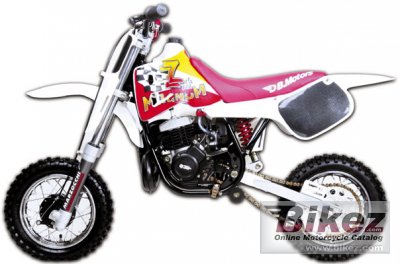

| Model: | DB Motors ZZ 10-10 |
| Year: | 2006 |
| Category: | Minibike, cross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.80 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Power: | 2.50 HP (1.8 kW)) @ 7500 RPM |
| Compression: | 9.5:1 |
| Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor. Dell’Orto |
| Ignition: | Electronic |
| Starter: | Kick |
| Gearbox: | 6-speed |
| Clutch: | Automatic centrifugal light 2-shoe oil batch clutch. |
| Physical measures |
|---|
| Dry weight: | 42.0 kg (92.6 pounds) |
| Wheelbase: | 957 mm (37.7 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Single steel beam frame |
| Front suspension: | Magnum 32mm hydraulic telescopic fork |
| Rear suspension: | Mechanical shock absorber |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Exhaust system: | Racing-type with aluminium muffler |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.0595 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 4.20 litres (1.11 gallons) |
