| General information |
|---|

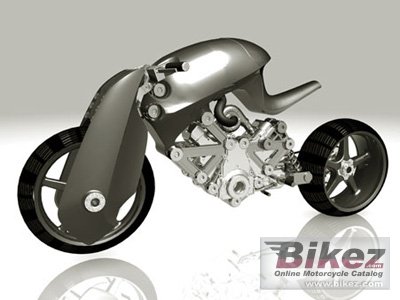

| Model: | Confederate Renovatio Project |
| Year: | 2008 |
| Category: | Prototype / concept model |
| Rating: | 55.8 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1686.00 ccm (102.88 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 135.00 HP (98.5 kW)) |
| Max RPM: | 7800 |
| Compression: | 11.0:1 |
| Bore x stroke: | 108.0 x 92.0 mm (4.3 x 3.6 inches) |
| Fuel system: | Injection. Sequential fuel injection |
| Valves per cylinder: | 2 |
| Fuel control: | OHC |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 154.2 kg (340.0 pounds) |
| Seat height: | 762 mm (30.0 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,524 mm (60.0 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Girder-type aircraft aluminum and titanium multi-link with shock centered on steering axis; Carbon fiber struts. |
| Rake (fork angle): | 27.0° |
| Front suspension: | Penske coil over shock, fully adjustable |
| Rear suspension: | Penske coil over shock with cooling reservoir; multi adjustable |
| Front tyre dimensions: | 120/60-17 |
| Rear tyre dimensions: | 280/55-17 |
| Front brakes: | Double disc. Bremo |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. Bremo |
| Rear brakes diameter: | 280 mm (11.0 inches) |
| Exhaust system: | 321 Stainless steel headers |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.8754 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Comments: | 190 HP optional supercharger engine. |
