| General information |
|---|

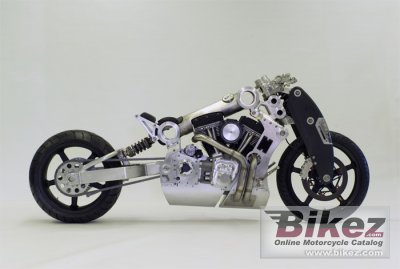

| Model: | Confederate C120 Renaissance Fighter |
| Year: | 2009 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1966.00 ccm (119.97 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Bore x stroke: | 104.8 x 114.3 mm (4.1 x 4.5 inches) |
| Fuel system: | Injection |
| Valves per cylinder: | 2 |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type
final drive: | Belt |
| Physical measures |
|---|
| Dry weight: | 195.0 kg (430.0 pounds) |
| Seat height: | 686 mm (27.0 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,626 mm (64.0 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Confederate triple load path design; CNC aircraft billet aluminum front and rear bulkheads; pure high-grade titanium 5 inch outer diameter .095 wall backbone; oil bearing |
| Front suspension: | Girder-type CNC aircraft billet aluminum and titanium multi-link |
| Rear suspension: | Confederate-Vincent design; centered coil-over shock; dual carbon fiber blades |
| Front tyre dimensions: | 120/60-ZR19 |
| Rear tyre dimensions: | 240/55-ZR18 |
| Front brakes: | Single disc. CNC aircraft billet aluminum 4 piston caliper; aluminum-ceramic matrix floating lightweight rotor |
| Rear brakes: | Single disc. CNC aircraft billet aluminum 2 piston caliper; aluminum-ceramic matrix floating lightweight rotor |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Comments: | Limited edition of 45 bikes. |
