| General information |
|---|

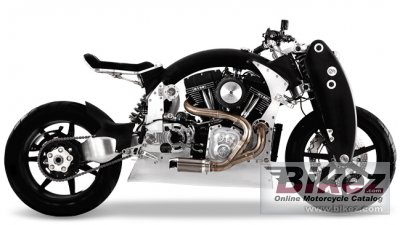

| Model: | Confederate B120 Wraith |
| Year: | 2011 |
| Category: | Naked bike |
| Rating: | 67.9 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1966.00 ccm (119.97 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Jims/Confederate B120 counter balanced twin cam 45 degree radial twin |
| Power: | 125.00 HP (91.2 kW)) |
| Torque: | 176.28 Nm (18.0 kgf-m or 130.0 ft.lbs) |
| Bore x stroke: | 104.8 x 114.3 mm (4.1 x 4.5 inches) |
| Fuel system: | Injection |
| Fuel control: | DOHC |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Confederate design triple load path carbon fiber monocoque. Aircraft grade CNC billet bulkhead, fuselage. Oil in frame. |
| Rake (fork angle): | 27.0° |
| Front suspension: | Double wishbone, machined from aircraft grade billet aluminum, linked to aerodynamically designed carbon fiber wing blades |
| Rear suspension: | Single sided aircraft grade aluminum swing arm |
| Front tyre dimensions: | 120/60-17 |
| Rear tyre dimensions: | 280/55-17 |
| Front brakes: | Double disc. Bremo, 4-piston |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Bremo, 2-piston |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | Carbon fiber; Front: 3.5 in X 17 in; Rear: 5.75 in x 17 in |
| Physical measures and capacities |
|---|
| Dry weight: | 176.9 kg (390.0 pounds) |
| Power/weight ratio: | 0.7066 HP/kg |
| Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Black/silver |
| Comments: | Limited edition of 250 bikes. |
