| CH Racing's profilation of this bike |
| Components quality is the aim of our little production destined to our selected clients. |
| General moped information |
|---|

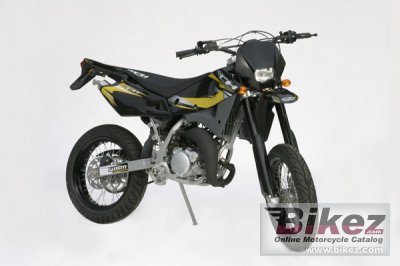

| Model: | CH Racing WSM 50 M.Y. | | Year: | 2008 | | Category: | Super motard | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.70 ccm (3.03 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 2 | | Fuel system: | Carburettor. Dell Ortho PHBN 16 | | Starter: | Kick | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type
final drive: | Chain | | Physical measures |
|---|
| Dry weight: | 92.0 kg (202.8 pounds) | | Overall height: | 1,160 mm (45.7 inches) | | Overall length: | 1,990 mm (78.3 inches) | | Ground clearance: | 300 mm (11.8 inches) | | Wheelbase: | 1,375 mm (54.1 inches) | | Chassis and dimensions |
|---|
| Front suspension: | MARZOCCHI upside-down telescopic hydraulic fork - black color | | Rear suspension: | Progressive unitrac type with single hydraulic shock absorber | | Front tyre dimensions: | 100/80-17 | | Rear tyre dimensions: | 130/70-17 | | Front brakes: | Single disc | | Front brakes diameter: | 260 mm (10.2 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 200 mm (7.9 inches) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 8.00 litres (2.11 gallons) | | Further information |
|---|
