| General information |
|---|

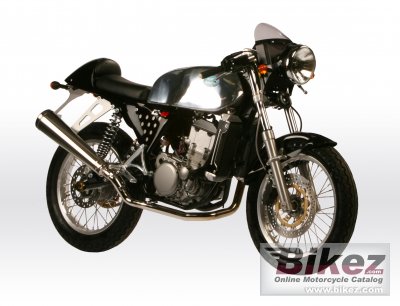

| Model: | CCM CR-40 |
| Year: | 2008 |
| Category: | Classic |
| Rating: | 60.1 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 398.00 ccm (24.29 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 42.00 HP (30.7 kW)) |
| Compression: | 12.2:1 |
| Bore x stroke: | 90.0 x 62.6 mm (3.5 x 2.5 inches) |
| Fuel system: | Carburettor. Keihin FCR39 |
| Fuel control: | DOHC |
| Ignition: | Electronic ignition (CDI) |
| Lubrication system: | Dry Sump |
| Cooling system: | Liquid |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 120.0 kg (264.6 pounds) |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Chassis and dimensions |
|---|
| Front suspension: | Marzocchi conventional 40mm |
| Rear suspension: | Hagon twin shocks |
| Front brakes: | Single disc |
| Front brakes diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 260 mm (10.2 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.3500 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 14.00 litres (3.70 gallons) |
