| General information |
|---|

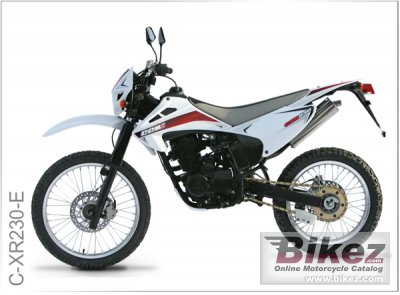

| Model: | CCM C-XR230-E |
| Year: | 2009 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 230.00 ccm (14.03 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 18.00 HP (13.1 kW)) @ 8500 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 67.0 x 65.0 mm (2.6 x 2.6 inches) |
| Fuel control: | SOHC |
| Ignition: | C.D.I. |
| Starter: | Electric |
| Lubrication system: | Wet Sump |
| Cooling system: | Air |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 118.0 kg (260.1 pounds) |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Alternate seat height: | 830 mm (32.7 inches) If adjustable, highest setting. |
| Ground clearance: | 340 mm (13.4 inches) |
| Wheelbase: | 1,350 mm (53.1 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Tubular welded steel |
| Front suspension: | Conventional 40mm |
| Rear suspension: | Single shock - adjustable preload |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.1525 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 8.80 litres (2.32 gallons) |
| Color options: | White/red/grey |
