2004 Cagiva Raptor 125 specifications, pictures, reviews and rating

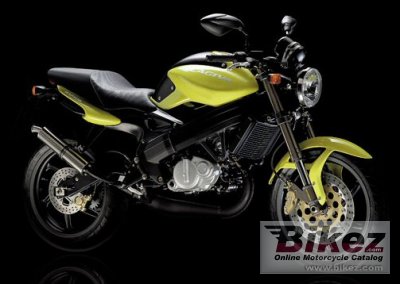

Picture credits - Cagiva. Click to submit more pictures.
|Model:||Cagiva Raptor 125|
|Rating:||80.9 out of 100. Show full rating and compare with other bikes|
|Engine and transmission|
|Displacement:||124.63 ccm (7.60 cubic inches)|
|Engine type:||Single cylinder, two-stroke|
|Power:||15.00 HP (10.9 kW)) @ 9000 RPM|
|Bore x stroke:||56.0 x 50.6 mm (2.2 x 2.0 inches)|
|Chassis, suspension, brakes and wheels|
|Frame type:||Aluminium double extruded beam with cast head pipe and rear plates|
|Front suspension:||Marzocchi upside-down fully adjustable hydraulic fork|
|Front suspension travel:||120 mm (4.7 inches)|
|Rear suspension:||Sachs progressive with hydraulic shock absorber|
|Rear suspension travel:||140 mm (5.5 inches)|
|Front tyre dimensions:||110/70-17|
|Rear tyre dimensions:||150/60-17|
|Front brakes:||Single disc|
|Front brakes diameter:||320 mm (12.6 inches)|
|Rear brakes:||Single disc|
|Rear brakes diameter:||230 mm (9.1 inches)|
|Physical measures and capacities|
|Dry weight:||125.0 kg (275.6 pounds)|
|Power/weight ratio:||0.1200 HP/kg|
|Seat height:||800 mm (31.5 inches) If adjustable, lowest setting.|
|Ground clearance:||175 mm (6.9 inches)|
|Fuel capacity:||12.50 litres (3.30 gallons)|
|Color options:||Red, Black|
|Parts and accessories||Check out parts and accessories from our other partners.|
|Ask questions||Join the 04 Cagiva Raptor 125 discussion group.|
|Insurance, loans, tests||Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.|
|Related bikes||List related bikes for comparison of specs|
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2004 Cagiva Raptor 125 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.
If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.
|Rating sample for this Cagiva bike|
Engine performance for the 2004 Cagiva Raptor 125:
(88.8 out of 100)
Click here for complete rating. You can also compare bikes.
