05 Cagiva Navigator 1000 specificationsCagiva Navigator 1000 2005

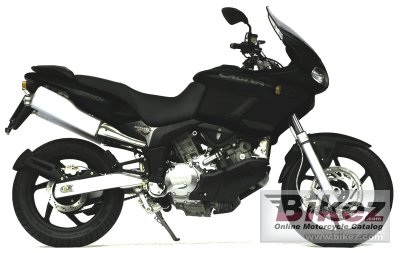

2005 Cagiva Navigator 1000 photo
Picture credits - Cagiva. Click to submit more pictures.
   Show big 2005 Cagiva Navigator 1000 image
2005 Cagiva Navigator 1000

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



General information
Model:Cagiva Navigator 1000
Year:2005
Category:Sport
Rating:73.1 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:994.76 ccm (60.70 cubic inches)
Engine type:V2, four-stroke
Compression:11.3:1
Bore x stroke:97.8 x 65.8 mm (3.9 x 2.6 inches)
Fuel system:Injection
Ignition:Electronic
Lubrication system:Oil cooler
Cooling system:Liquid
Chassis, suspension, brakes and wheels
Frame type:High strength steel tubular frame
Trail:80 mm (3.2 inches)
Front suspension:Telescopic hydraulic fork with advanced axle
Front suspension travel:150 mm (5.9 inches)
Rear suspension:Progressive, single shock absorber with adjustable spring preload
Rear suspension travel:160 mm (6.3 inches)
Front brakes:Single disc
Front brakes diameter:298 mm (11.7 inches)
Rear brakes:Single disc
Rear brakes diameter:298 mm (11.7 inches)
Physical measures and capacities
Dry weight:210.0 kg (463.0 pounds)
Seat height:805 mm (31.7 inches) If adjustable, lowest setting.
Overall height:850 mm (33.5 inches)
Overall length:2,168 mm (85.4 inches)
Overall width:825 mm (32.5 inches)
Ground clearance:150 mm (5.9 inches)
Wheelbase:1,530 mm (60.2 inches)
Fuel capacity:20.06 litres (5.30 gallons)
Other specifications
Starter:Electric
Color options:Bat black, Rosso cagiva, Blue marine
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 05 Cagiva Navigator 1000 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Cagiva. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2005 Cagiva Navigator 1000 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this Cagiva bike
Reliability for the 2005 Cagiva Navigator 1000:


(77.4 out of 100)

Click here for complete rating. You can also compare bikes.
